Product specifications
KD0095OLEDN010

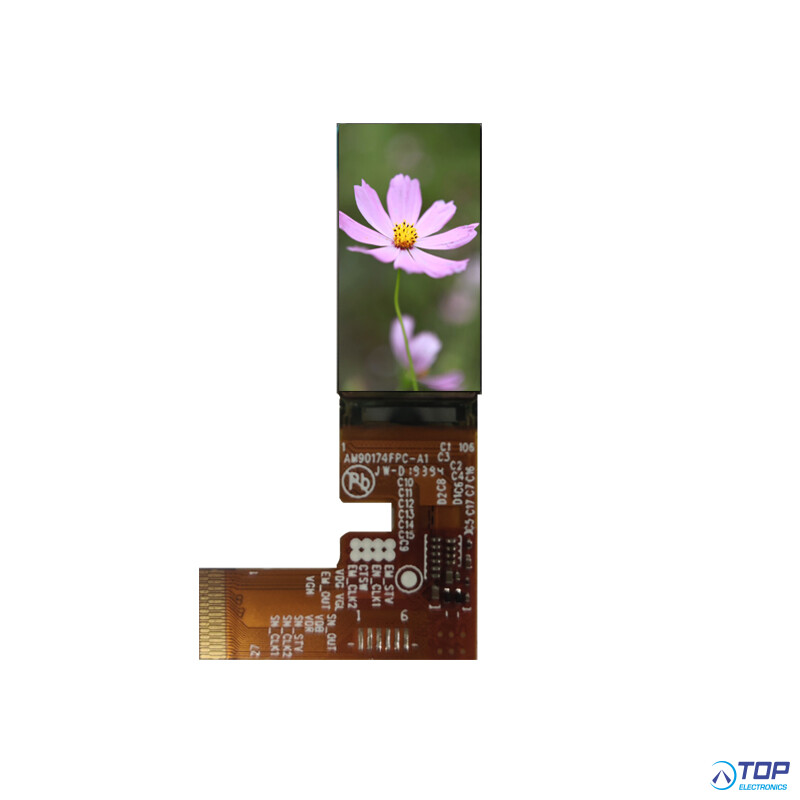

Startek 0.95 inch 120x240 resolution driver IC RM39310 SPI interface AMOLED display
1. Product name: 0.95 inch 120x240 resolution driver IC RM39310 SPI interface AMOLED display
2. Part No.: KD0095OLEDN010
3. Size.: 0.95 inch
4. With touch panel or not: No
5. Touch type: No
6. Display type: AMOLED
7. Display colors: 16.7M
8. Color gamut: --
9. Response time: 5ms
10. Resolution (pixels): 120x240
11. Pixel pitch: 0.09(H)*0.09(V)
12. Viewing direction: Free V.A
13. Driver IC: RM69310
14. Overall size: 12.80*27.35*0.74mm
15. Viewing area: --
16. Active area: 10.80*21.60mm
17. Luminance: 450cd/m²
18. Contrast: 80000∶1
19. Interface type: 3-wire SPI/4-wire SPI
20. Pin NO.: 27
21. Pin pitch: --
22. Touch interface: No
23. Touch IC: No
24. Connecting type: plugging type
25. Input voltage: 3.3V
26. Life time: 20000h
27. Operating temperature range: -20℃～+70℃
28. Storage temperature range: -30℃～+80℃
29. Compliant: RoHS
30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
