Product specifications
KD013QVFMD002-01

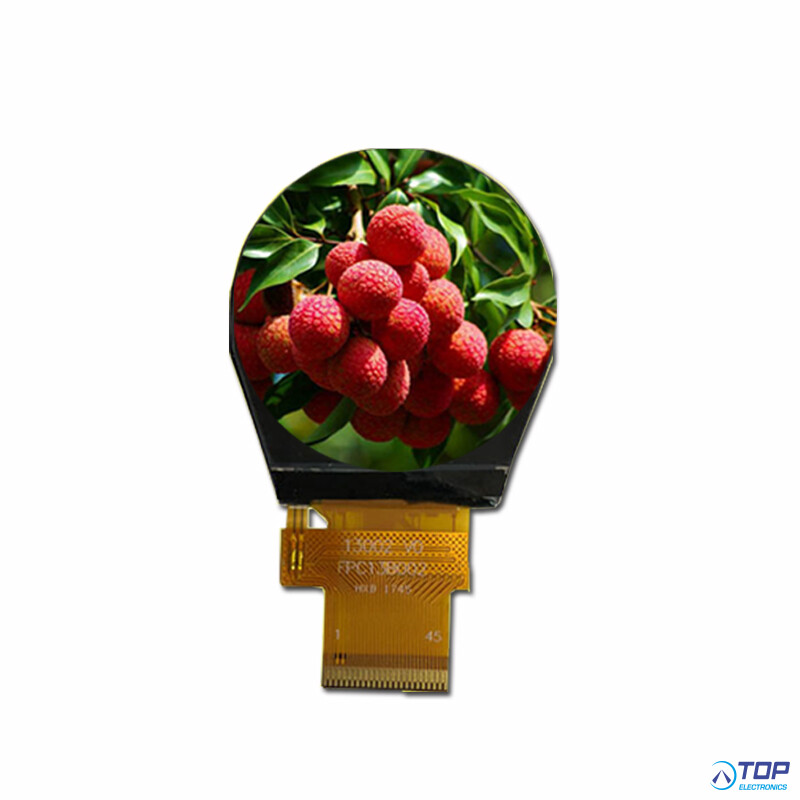

Startek 1.3" IPS Display Round
1. LCD name: 1.3 inch 240*240 , ST7789V, 16/18 bit RGB +3/4 SPI interface, 3/4 line serial TFT LCD
2. Part No.: KD013QVFMD002-01
3. Other model Part NO.:
4. Compatible part No.:
5. Size.: 1.3 inch
6. With touch panel or not: No
7. Display type: IPS
8. Display colors: 65K/262K
9. Resolution (pixels): 240(RGB)*240
10. Pixel pitch: 0.135(H)*0.135(V)mm
11. Viewing direction: ALL
12. Controller IC: ST7789V
13. Display mode: Transmissive Normally Black
14. Overall size: 35.90*39.70*1.29 mm
15. Active Area: 32.40*32.40 mm
16. Luminance: 450cd/m2
17. Contrast:600
18. Interface type: 8/9/16/18 bit MCU
3/4 SPI+16/18 BIT RGB
3/4 line serial interface
19. Pin NO.: 45pins
20. Pin pitch: 0.3mm
21. Connecting type: FPC socker
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 2 LED Vled =6.4V, Iled=15-20mA
25. LED life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -20----70 °C
28. Certification of registration: ISO9001:2008
TS16949:2009 ISO 13485 :2003
29. Compliant: RoHS
