Product specifications
KD014QQTBN002

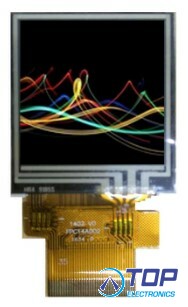

Startek 1.44" IPS Display
1. LCD name: 1.44 inch 128*128 QQVGA, ST7735S, 8/ 16 bit MCU, 3/4 wire SPI interface TFT LCD
2. Part No.: KD014QQTBN002
3. Other model Part NO.:
4. Compatible part No.:
5. Size.: 1.44 inch
6. With touch panel or not: No
7. Display type: TFT
8. Display colors: 65K
9. Resolution (pixels): 128(RGB)*128
10. Pixel pitch: 0.1992(H)*0.207(V)
11. Viewing direction: 6:00
12. Controller IC: ST7735S
13. Display mode: Transmissive Normally white
14. Overall size: 32.36*38.00*3.00 mm
15. Active Area: 25.49*26.49 mm
16. Luminance: 450cd/m2
17. Contrast: 300
18. Interface type: 8/16 bit MCU
3/4 line serial interface
19. Pin NO.: 35pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 2 LED Vled =3.2V, Iled=30-40mA
25. Backlight life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -30----80 °C
28. Certification of registration: ISO9001:2008 TS16949:2009 ISO13485:2003
29. Compliant: RoHS.
