Product specifications
KD101WXFLD021-01

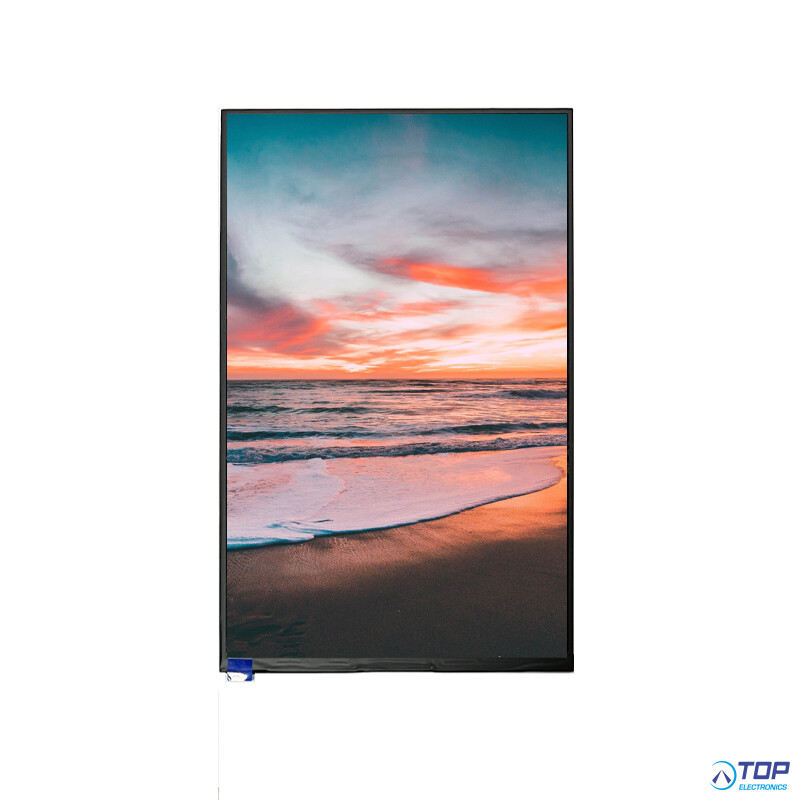

Startek 10.1" IPS Display
1.LCD name: 10.1 inch HD TFT LCD 1200*1920 HX8279D MIPI interface tft display lcd panel
2.Part No.: KD101FHFID030-01
3.Other model Part No.: NO
4. Compatible part No.: NO
5. Display mode: IPS TFT
6. Display colors: 16.7M
7. Resolution (pixels): 1200(RGB)*1920
8. Pixel pitch: 0.1128(H)*0.1128(V)
9. Viewing direction: ALL
10. Controller IC: HX8279D
11. Display mode: Transmissive/ Normally Black
12. Overall size:143*228.6*2.6mm
13. Active Area: 135.36(H)*216.58(V)mm
14. Luminance:380cd/m2
15. Contrast: 1000
16. Interface type: MIPI interface
17. Number of pin: 40pins
18. Pin pitch: 0.5
19. Connecting type: adaptor type
20. Input voltage: 3.3V
21. Backlight type and color: LED backlight/white
22. Life span: 50000h
23. Operating temperature range: -10--50°C
24. Storage temperature range: -20—60°C
--- Startek product ---
