Product specifications
Same Sky - CEM-1212C

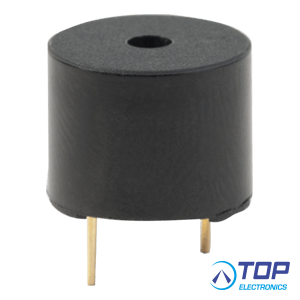

12 mm, 12 V, 85 dB, Through Hole, Sealed, Driving Circuit, Magnetic Audio Transducer Buzzer
Specifications
- Driving circuit ................... Yes
- Rated Voltage .................. 12 Vdc
- Sound Pressure (dB)........... 85
- Mounting Style.................. Through Hole
- Curr. Consumption ............. 35 mA max.
- Operating Temp. (°C) ......... -20 ~ +60° C
- Storage temperature .......... -30 ~ +70° C

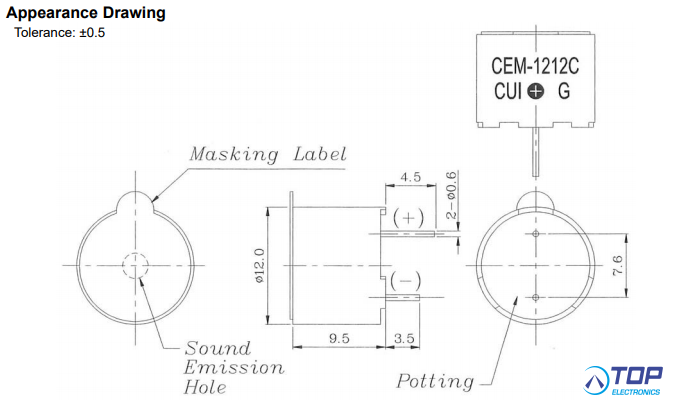

- Dimensions Ø x H (mm) ........ 12 x 9.5
- Dimensions Ø x H (in) .......... 0.47 x 0.37
- Washable ........................ Yes
- Same Sky product -
