Product specifications
KD020QVRMA028

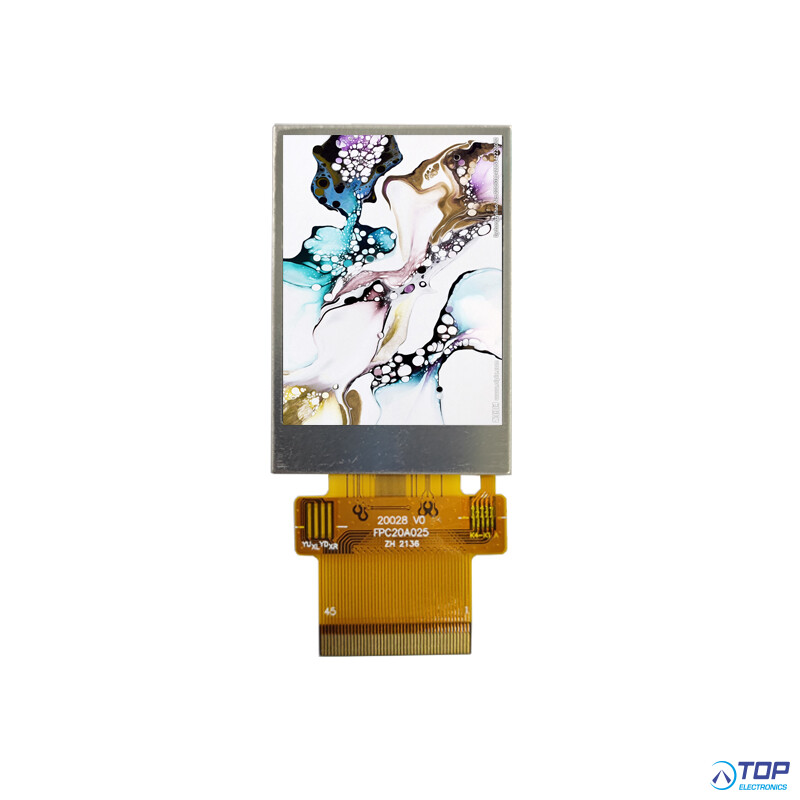

Startek 2.0" Transflective Display
1. LCD name: 8/9/16/18 bit MCU RGB SPI+RGB interface TFT LCD
2. Part No.: KD020QVRMA028
3. Compatible part No.:KD020QVRMA002
4. Size.: 2.0 inch
5. With touch panel or not: No
6. Display type: TFT
7. Display colors: 65K/262K
8. Resolution (pixels): 240(RGB)*320
9. Pixel pitch: 0.1275(H)*0.1275 (V)
10. Viewing direction: ALL
11. Controller IC: ST7789V
12. Display mode: Transflective
13. Overall size: 35.80*52.10*2.65mm
14. Viewing area:
15. Active Area: 30.6*40.8mm
16. Luminance: 260cd/m2
17. Contrast: 800
18. Interface type: 8/9/16/18 bit MCU 3/4SPI+16/18Bit RGB Interface 3-line/4-line Serial Interface
19. Pin NO.: 45pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 4 LED in parallel, common cathod Vled =3.2V, Iled=60-80mA
25. Life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -30----80 °C
28. Certification of registration: ISO9001:2008 TS16949:2009 ISO13485:2003
29. Compliant: RoHS
