Product specifications
KD020LQRMA017

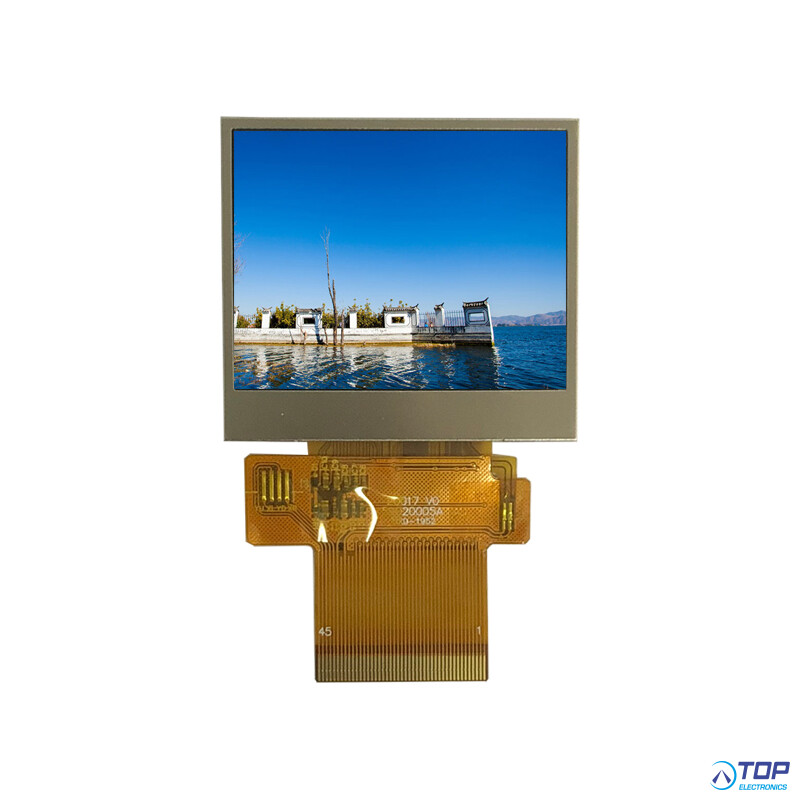

Startek 2.0" Transflective Display
1. LCD name: 2.0 inch 320*240, ILI9342C, 8 /9/16/18 bit MCU ，SPI+RGB， SPI interface TFT LCD
2. Part No.: KD020LQRMA017
3. Compatible part No.:
4. Size.: 2.0inch
5. With touch panel or not: NO
6. Display type: TFT
7. Display colors: 65K/262K
8. Resolution (pixels): 320*240
9. Pixel pitch: 0.1257(H)*0.1257(V)
10. Viewing direction: FREE
11. Controller IC:ILI9342C
12. Display mode: Transflective Normally Black
13. Overall size: 46.50*41.56*2.7mm
14. Viewing area:
15. Active Area: 40.8*30.6mm
16. Luminance: 350cd/m2
17. Contrast: 170
18. Interface type: 8 /9/16/18 bit MCU SPI+RGB SPI
19. Pin NO.: 45pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 3 LED in parallel, common cathode Vled =3.2V, Iled=60mA
25. LED Life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -30----80 °C
28.Compliant: RoHS
29.Certification of registration: ISO9001,ISO13485,IATF16949
