Product specifications
KD021WVFPD003

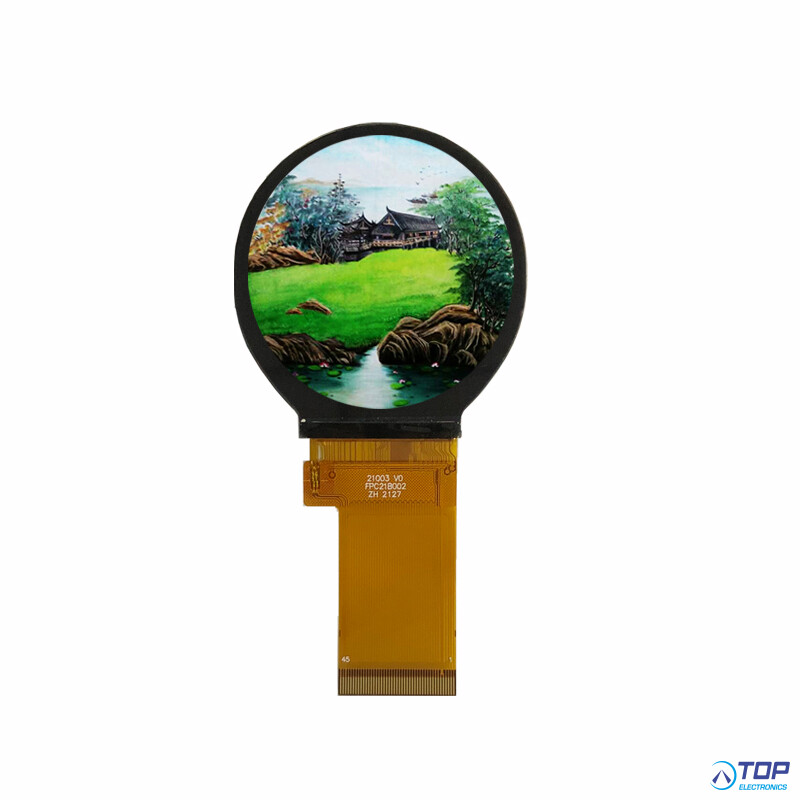

Startek 2.1" IPS Display Round
1. LCD name: 2.1 inch 480*480,ST7701S SPI+16/18/24 RGB TFT LCD IPS
2. Part No.: KD021WVFPD003
3. Compatible part No.:
4. Size.: 2.1 inch
5. With touch panel or not: No
6. Display type: TFT
7. Display colors: 16.7m
8. Resolution (pixels): 480*480
9. Pixel pitch: 0.111(H)*0.111(V)
10. Viewing direction:IPS
11. Controller IC: ST7701S
12. Display mode: Transmissive Normally white
13. Overall size: 56.18*59.71*2.24mm
14. Viewing area:
15. Active Area: 53.28(H)*53.28
16. Luminance: 500cd/m2
17. Contrast: 1000
18. Interface type:SPI+16/18/24 RGB
19. Pin NO.: 45pins
20. Pin pitch: 0.5mm
21. Connecting type: FPC Soldering
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 4 LED Vled =3.2V, Iled=12.8-30mA
25. Backlight Life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -30----80 °C
28. Certification of registration: ISO9001:2008 TS16949:2009 ISO 13485 :2003
