Product specifications
KD024QVFMA020

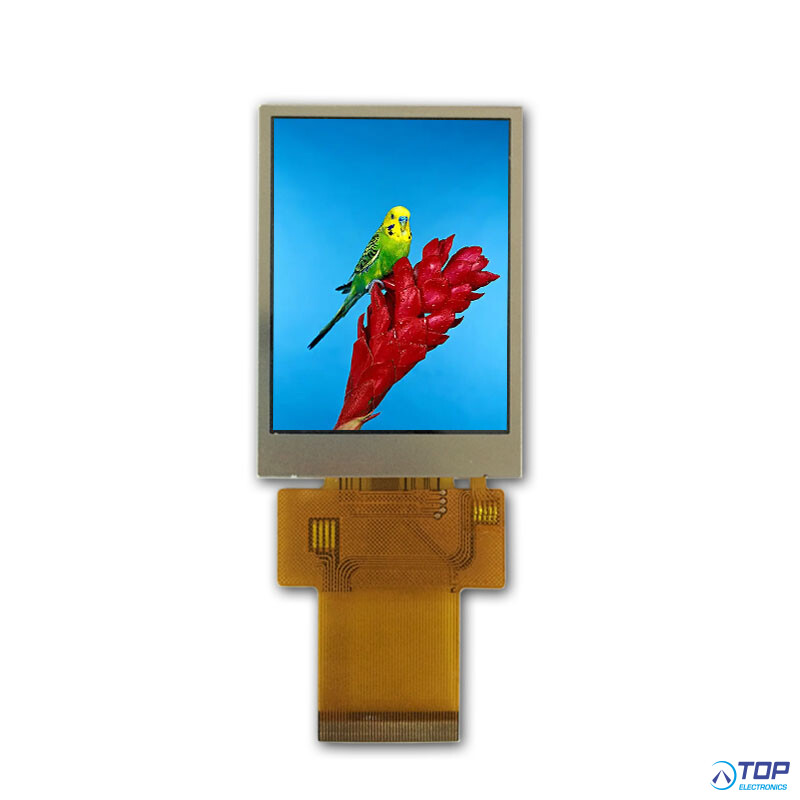

Startek 2.4" IPS Display
1. LCD name: 2.4 inch,full viewing angle, sunlight readable, 8/9/16/18
MCU, 16/18 RGB, 3/4 SPI interface IPS LCD module
2. Part No.: KD024QVFMA020
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K
7. Resolution (pixels): 240(RGB)*320
8. Pixel pitch: 0.153 (H) x 0.153 (V)
9. Viewing direction: ALL (160O)
10. Controller IC: ST7789V
11. Display mode: Transmissive/ Normally Black
12. Overall size: 42.92*60.26*2.5mm
13. Viewing area:
14. Active Area: 36.72*48.96mm
15. Luminance: 550cd/m2
16. Contrast: 800
17. Interface type: 8080 8/9/16/18bit MCU interface
3/4 SPI+ 16/18bit RGB interface
3/4 line serial interface
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: 4 LED parallel, common anode If=80mA, Vf =3.2V
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80 °C
27. Certification of registration: ISO9001:2008 ISO13485:2003 TS16949:2009
28. Compliant: RoHS.
