Product specifications
KD024HVFID078

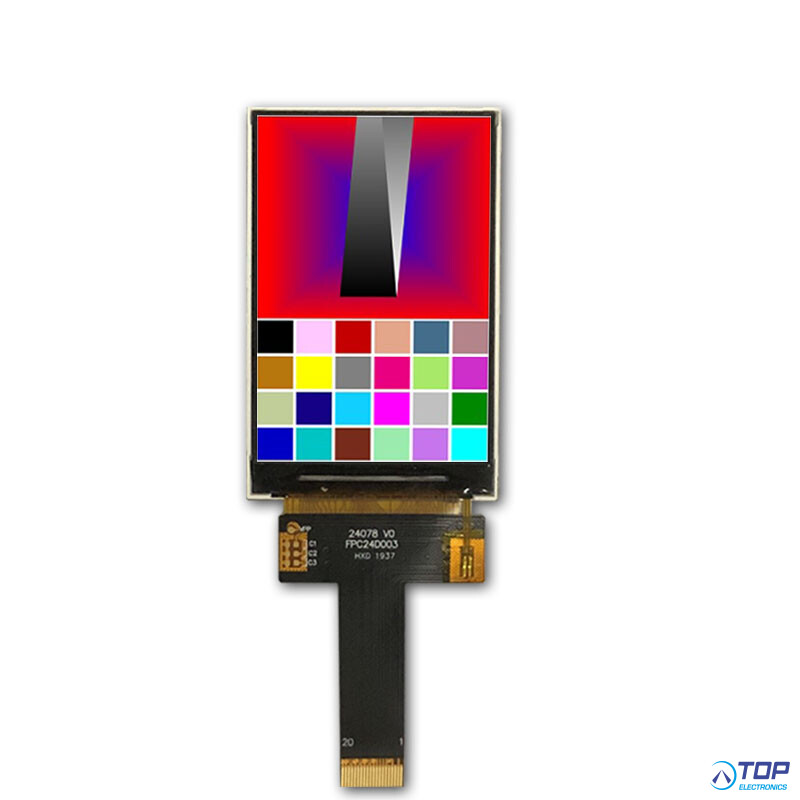

Startek 2.4" IPS Display
1. LCD name: 2.4 inch 320*480, ST7701S, full viewing angle, sunlight readable, IPS LCD module
2. Part No.: KD024HVFID078
3. Size.: 2.4 inch
4. With touch panel or not: NO
5. Touch type:
6. Display type: TFT
7. Display colors: 65K/262K
8. Resolution (pixels): 320(RGB)*480
9. Pixel pitch: 0.0345(H)*0.1035(V)
10. Viewing direction: ALL
11. Controller IC: ST7701S
12. Display mode: Transmissive/ Normally Black
13. Overall size: 39.52x60.68x2.26 mm
14. Viewing area:
15. Active Area: 33.12(H)*49.68(V) mm
16. Luminance: 750cd/m2
17. Contrast: 800
18. Interface type: MIPI
19. Pin NO.: 20pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 6 LED If=20mA, Vf =19.2V
25. LED Life span: 50000h
26. Certification of registration: ISO9001; IATF1694;ISO13485
