Product specifications
KD024HVFID076

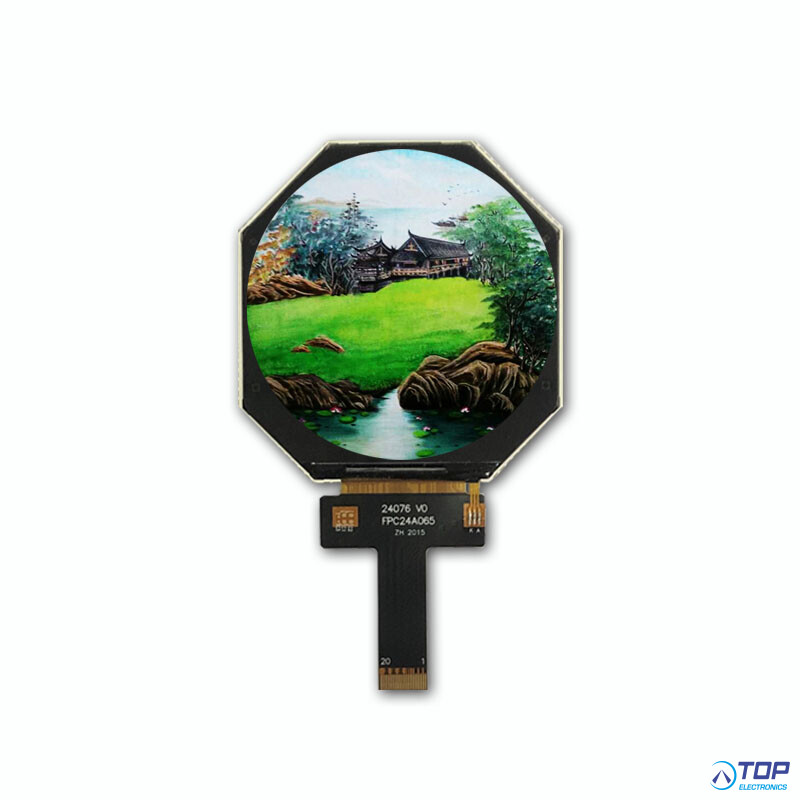

Startek 2.4" IPS Display Round
1. LCD name: 2.47 inch 480*480, ST7701S, full viewing angle, sunlight readable, round IPS LCD module，MIPI interface
2. Part No.: KD024HVFID076
3. Size.: 2.47 inch
4. With touch panel or not: NO
5. Touch type:
6. Display type: TFT
7. Display colors: 65K/262K
8. Resolution (pixels): 480(RGB)*480
9. Pixel pitch: 0.1305(H)*0.1305(V)
10. Viewing direction: ALL
11. Controller IC: ST7701S
12. Display mode: Transmissive/ Normally Black
13. Overall size: 69.19*71.74*2.5 mm
14. Viewing area:
15. Active Area: 62.64(H)*62.64(V)(circle) mm
16. Luminance: 430cd/m2
17. Contrast: 800
18. Interface type: 2 lane MIPI
19. Pin NO.: 20pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 6 LED If=40mA, Vf =9.3V
25. LED Life span: 50000h
26. Certification of registration: ISO9001; IATF16949；ISO13485
