Product specifications
KD024WVFPD102

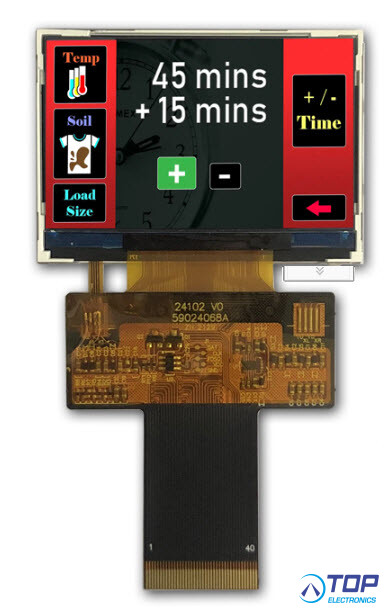

Startek 2.4" IPS Display
1. LCD name: 2.4 inch 800x480, HX8283-A, RGB interface full viewing angle, sunlight readable, IPS LCD module
2. Part No.:KD024WVFPD102
3. Size.: 2.4 inch
4. With touch panel or not: NO
5. Touch type:
6. Display type: LTPS
7. Display colors: 65K/262K
8. Resolution (pixels): 800*480
9. Pixel pitch: 21.8(H)*65.4(V) um
10. Viewing direction: ALL
11. Controller IC: HX8283-A
12. Display mode: Transmissive/ Normally Black
13. Overall size: 58.5x41.8x2.58 mm
14. Viewing area:
15. Active Area: 52.32(H)*31.392(V)(2.4＂) mm
16. Luminance: 500cd/m2
17. Contrast: 1000
18. Interface type: 18/24 bit RGB
19. Pin NO.: 40pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 8 LED If=20mA, Vf =24V
25. LED Life span: 50000h
26. Certification of registration: ISO9001 ISO13485 IATF16949 ISO14001
