Product specifications

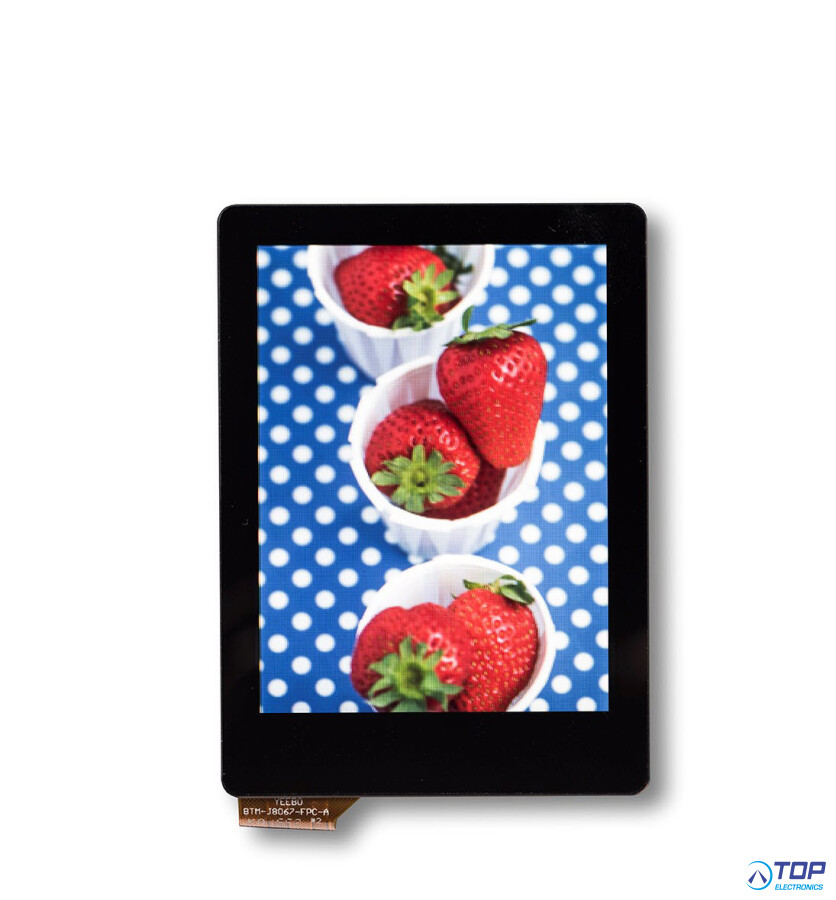

YB-TG240320S25A-C-A0
2.4" IPS with Touch, Serial/Parallel, 450nits
General Specification

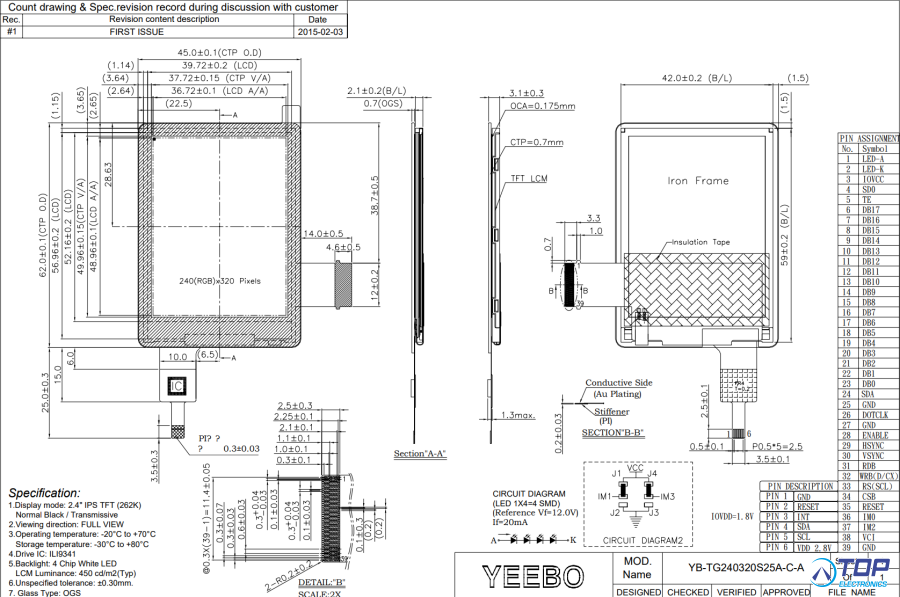

Module Size: 45.0 (W) * 62.0 (H) * 3.1 (T) mm
Module Size(With FPC): 59.0 (W) * 87.0 (H) * 3.1 (T) mm
Display Size(Diagonal): 2.4 inch
Display Format: 240(RGB)*320 Pixels
Active Area: 36.72(W) * 48.96 (H) mm
Pixel Pitch 0.153 * 0.153 mm
LCD Type: TFT (262K) / Transmissive / Normally Black
View Angle: Free (IPS)
Controller IC: ILI9341
TFT Interface: Serial / Parallel
Brightness: 450 nits
CTP IC: ST1624
CTP Interface: I2C
Weight: 20g
