Product specifications
KD024QVRMA041

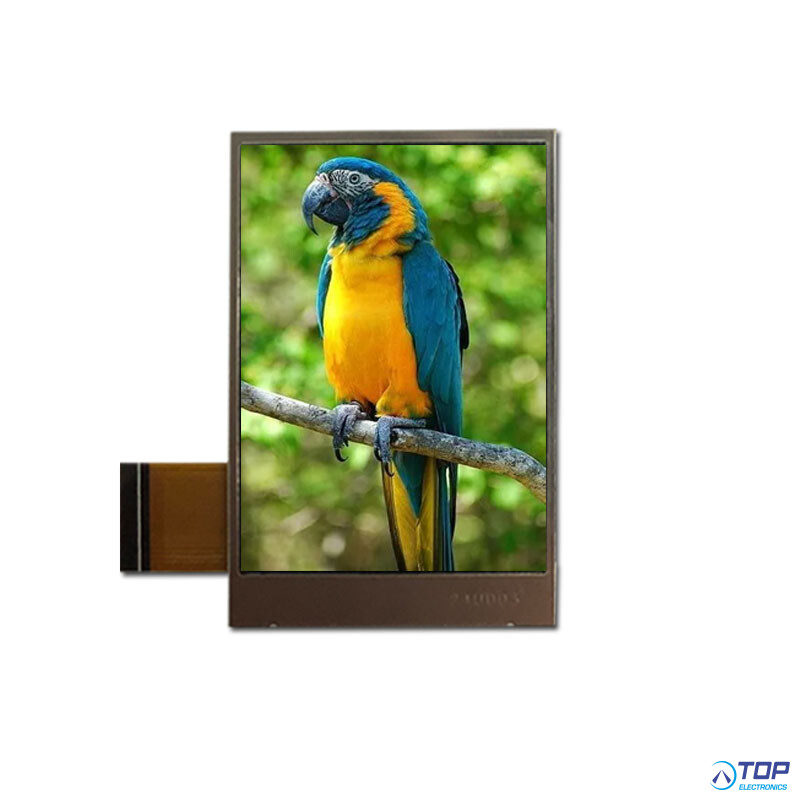

Startek 2.4" Transflective Display
1. LCD name: 2.4 inch 240*320, ST7789V, full viewing angle, sunlight readable, 8/9/16/18
MCU, 16/18 RGB, 3/4 SPI interface IPS LCD module
2. Part No.: KD024QVRMA041
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K
7. Resolution (pixels): 240(RGB)*320
8. Pixel pitch: 0.153 (H) x 0.153 (V)
9. Viewing direction: ALL (160O)
10. Controller IC: ST7789V
11. Display mode: Transflective/ Normally Black
12. Overall size: 42.92*60.26*2.45mm
13. Viewing area: 39.32*51.36 mm
14. Active Area: 36.72*48.96mm
15. Luminance: 360cd/m2
16. Contrast: 300
17. Interface type: 8/9/16/18bit MCU interface
3/4 SPI+16/18bit RGB interface
3 line/4 line serial interface
18. Pin NO.: 45pins
19. Pin pitch: 0.3mm
20. Connecting type: FPC Socket
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: edge lighting type with6 chips If=20mA, Vf =19.2V
24. Backlight Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80 °C
27. Certification of registration: ISO9001:2008 ISO/TS16949:2009 ISO 13485.
28. Compliant: RoHS
14 gram
