Product specifications

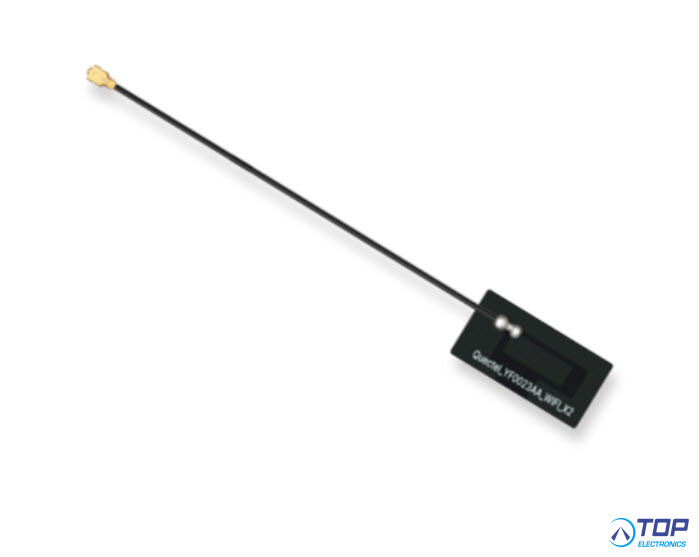

YF0023CA
Wi-Fi/BT Adhesive Mount Antenna
The YF0023AA embedded antenna is a multiband device offering excellent performance for Wi-Fi 6E applications in the 6GHz band (5.925GHz to 7.125GHz) plus 2.4GHz and 5GHz Wi-Fi/WLAN solutions. The flexibility and adhesive backing makes this antenna easy to mount in any non-metallic standard or custom enclosures. Offering omnidirectional high efficiency and gain, its ground plane independent and connection is made to the radio via the 100mm cable, terminated with an RF 1 type connector (IPEX & U.FL compatible). Optional cable lengths and connector types available upon request. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- PCB with cable adhesive mount antenna
- Optimized for Wi-Fi/BT networks
- RF I Generation connector (IPEX & U.FL compatible)
Frequency band: 2400-2500MHz, 4900-5850MHz, 5925-7125MHz
Dimensions: 37.8mm × 7.5mm
Cable length: 100mm±2
Peak efficiency: 85%
RoHS and REACH compliant
- Quectel Wireless Solutions product -
