Product specifications
KD028WXFPD057

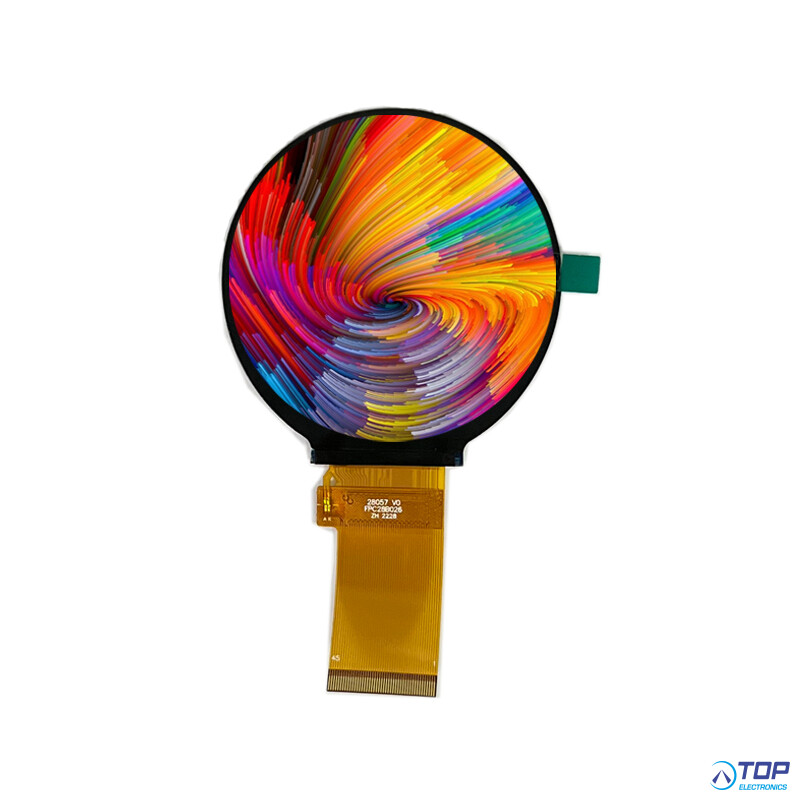

Startek 2.8" IPS Display Round
1.LCD name: 2.8 inch 480*480 ST7701S RGB interface IPS circular screen LCD module
2.Part No.: KD028WXFPD057
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K
7. Resolution (pixels): 480(RGB)*480
8. Pixel pitch: 0.1461(H)*0.1461(V)
9. Viewing direction: ALL
10. Controller IC: ST7701S
11. Display mode: Transmissive Normally Black
12. Overall size: 73.03*76.48*2.24 mm
13. Viewing area:
14. Active Area: 70.13(H)*70.13(V) (2.76 inch)
15. Luminance: 500cd/m2
16. Contrast: 1500
17. Interface type: 16/18/24BIT RGB
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 4 LED parallel, common anode If=80mA, Vf =3.2V
24. LED Life span: 50000h
25. Operating temperature range: -20 -- 70 °C
26. Storage Temperature range: -30 -- 80 °C
27. Certification of registration: ISO9001:2008 ISO/TS6949:2009 ISO13485:2003
28. Compliant: RoHS
