Product specifications

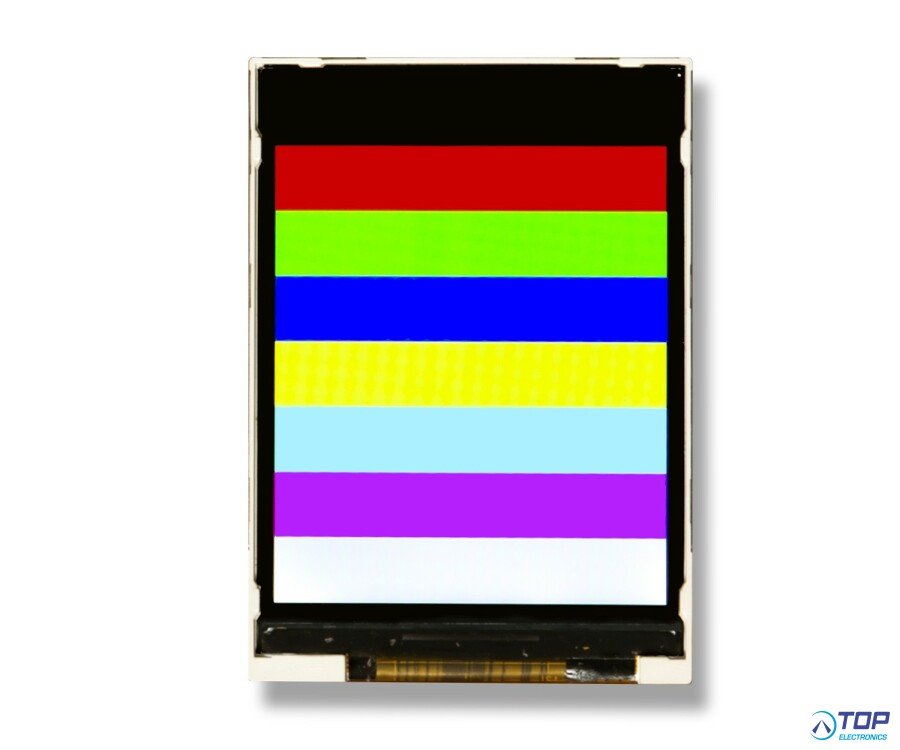

YB-TG240320S26A-N-A0
Display TFT 2.8", IPS, Parallel, 350nits
General Specification
Module Size: 49.0 (W) * 69.0 (H) * 2.06 (T) mm
Module Size(With FPC): 58.6 (W) * 69.5 (H) * 2.06 (T) mm
Display Size(Diagonal): 2.8 inch
Display Format: 240(RGB)*320 Pixels
Active Area: 43.2(W) * 57.6 (H) mm
Pixel Pitch: 0.18* 0.18 mm
LCD Type: TFT (262K) / Transmissive / Normally Black
View Direction: Free(IPS)
Controller IC: ILI9341
Interface: Parallel
Brightness: 350 nits
Weight: 13.6g
