Product specifications
KD028QVFMA017-TP

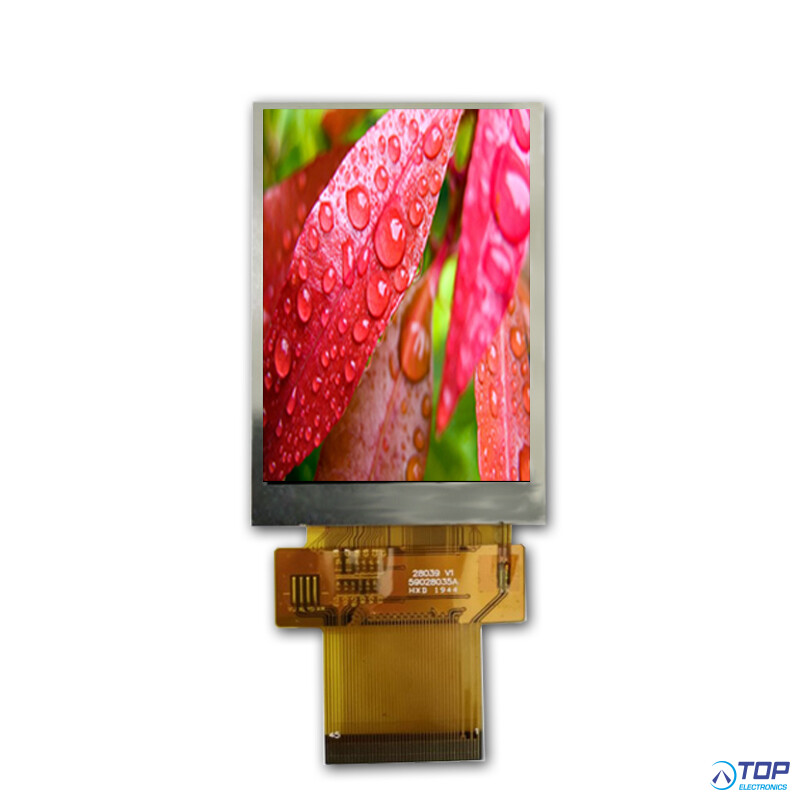

Startek 2.8" Display+RTP
Specifications:
1.LCD name: 2.8 inch TFT LCD ,240*400 resolution, Transflective LCD module with SPI/MCU/RGB interface
2.Part No.: KD028WQRMA039
3.Size.:2.8 inch
4.With touch panel or not: No
5.Touch type: --
6.Display type: TFT
7.Display colors: 65K/262K
8.Resolution (pixels): 240(RGB)*400
9.Pixel pitch: 0.153 (H) x 0.153 (V)
10.Viewing direction: 5:00
11.Controller IC: ILI9327
12.Display mode: Transflective/ Normally White
13.Overall size: 44.00*72.50*2.60mm
14.Active Area: 36.72*61.20mm
15.Luminance: 120cd/m2
16.Contrast: 70
17.Interface type: 8080 8/9/16/18bit MCU interface
3/4SPI+16/18bit RGB interface
3/4 wire SPI interface
18.Pin NO.: 45 pins
19.Pin pitch: 0.5mm
20.Connecting type: plugging type
21.Input voltage: 3.3V
22.Backlight type and color: LED backlight/white
23.Backlight: 4 Dual LED in series,If=20mA, Vf =24V
24.Life span: 30000h
25.Operating temperature range: -20 -- 70 °C
26.Storage Temperature range: -30 -- 80°C
27.Compliant: RoHS
28.Certification of registration: ISO9001,ISO13485,IATF16949
