Product specifications
Same Sky - AMT113S-V

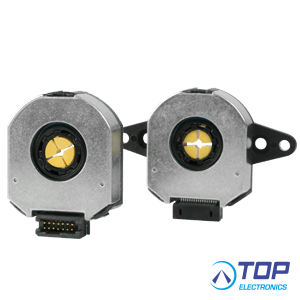

28 mm, 48 ~ 4096PPR, Incremental, Capacitive Modular Encoder

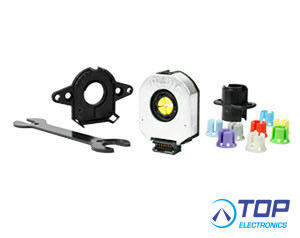

Same Sky's AMT11-V Kit Series is a rugged, high accuracy incremental encoder designed with maximum flexibility in mind. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and baseplates with multiple pre-drilled mounting hole patters to mate with a wide range of motors. Coupled with selectable resolution range of 48 to 4096 via Same Sky's AMT Insight GUI, the AMT112-V and AMT113-V kits provide engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Features
-High accuracy
-Resilient to dust, dirt and oil
-Compact design
-Low current draw
-Modular locking hub design for simple assembly
-20 programmable resolutions up to 4096 PPR
-9 different shaft sizes from 2 mm to 8 mm
-Multiple mounting options
-Quadrature A, B
--40 to +105°C temperature range
-Compatible with AMT Viewpoint™ GUI
Specifications
- Input Voltage (Vdc) 4.5 ~ 5.5
-Operating Temp. (°C) 40 ~ 105
-Speed, Max. (RPM) 8000
