Same Sky - 28 mm, 48 ~ 2048 PPR, Incremental, Capacitive Modular Encoder

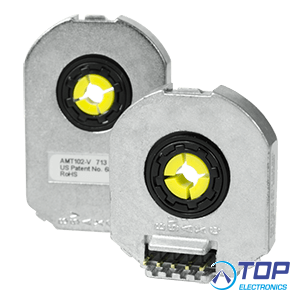

AMT 103 with axial connector
Same Sky's AMT103-V Kit is a rugged, high accuracy incremental encoder designed with maximum flexibility in mind. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and baseplates with multiple pre-drilled mounting hole patters to mate with a wide range of motors. Coupled with an on-board dip switch offering a selectable resolution range of 48 to 2048, the AMT102-V kits provide engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Features
-High accuracy
-Resilient to dust, dirt and oil
-Compact design
-Low current draw
-Simple assembly
-16 programmable resolutions via on-board dip switch
-9 different shaft sizes from 2 mm to 8 mm
-Multiple mounting options
-Quadrature A, B
--40 to +100°C temperature range
Specifications
-Input Voltage (Vdc) 3.6 ~ 5.5
-Operating Temp. (°C) -40 ~ 100
-Speed, Max. (RPM) 7500
