Product specifications
KD032QVFMA011-RT

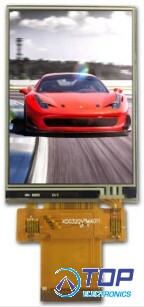

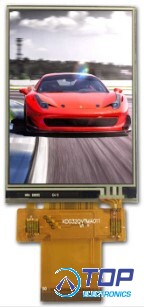

Startek 3.2" Display+CTP
Specifications:
1. LCD name: 3.2 inch 240*320, ST7789V, 8/16 bit MCU interface TFT LCD module.
2. Part No.: KD032QVTMA011-RT
3. Other model Part No.
4. Compatible part No.:
5. Display type: TFT
6. Display colors: 65K/262K
7. Resolution (pixels): 240(RGB)*320
8. Pixel pitch: 0.2025 (H) x 0.2025 (V)
9. Viewing direction: 6:00
10. Controller IC: ST7789V
11. Display mode: Transmissive Normally white
12. Overall size: 55.00*77.20*3.80mm
13. Viewing area: 50.20*66.40mm
14. Active Area: 48.60*64.80mm
15. Luminance: 400cd/m2
16. Contrast: 500
17. Interface type: 8/9/16/18 bit MCU 3/4SPI+16/18 bit RGB+3/4 line serial interface
18. Pin NO.: 50pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: 6 LED in series Vled =3.2V, Iled=90-120mA
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80 °C
27. Certification of registration: ISO9001:2015 TS16949:2015 ISO13485：2016
28. Compliant: RoHS
