Product specifications
KD034WVFLD004

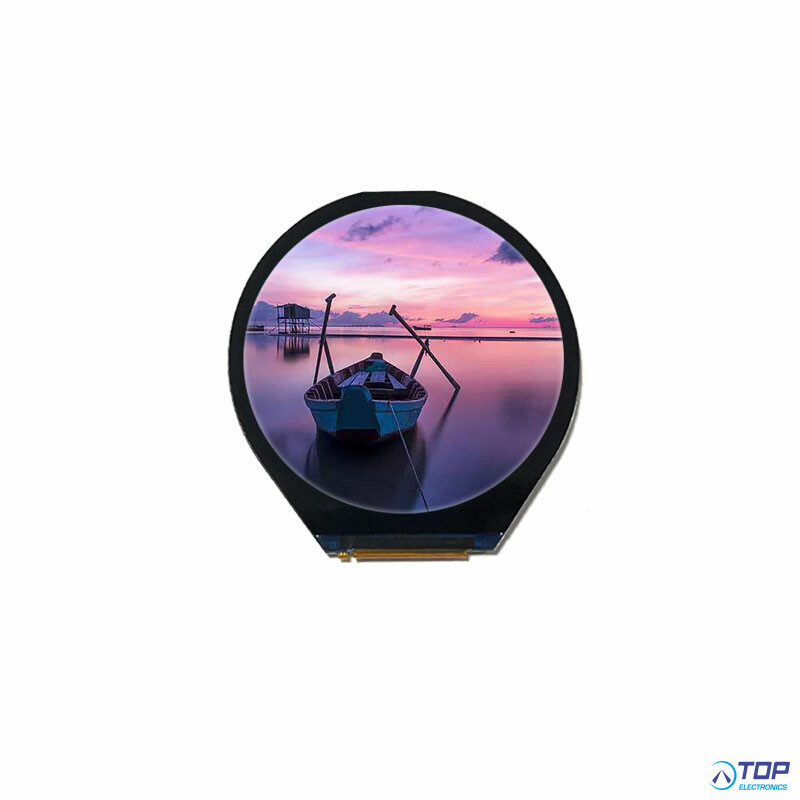

Startek 3.4" IPS Display Round
1.Product name：3.4 inch 800×800 round tft lcd screen with lvds interface
2.Part No.：KD034WVFLD004
3.Size：3.4 inch
4.Resolution：800×800
5.Interface：8BIT LVDS
6.Driver IC：NV3051F-L
7.Display colors：16.7M
8.Viewing angle：ALL
9.Pixel Pitch：0.1095×0.1095 mm
10.Outline dimension：94.9×96.95×2.18 mm
11.Active Area：87.6×87.6 mm
12.Weight：35g
13.Operating temperature：-20-+70℃
14.Storage temperature：-30-+80℃
15.Luminance：420 cd/m2
16.Contrast ratio：1200
17.Pin No.：40PIN
18.Pin Pitch：0.5 mm
19.Compliant：ROHS
20.Certification of registration：ISO14001 ISO9001 ISO13485 IATF16949
21.Life span：50000h
22.Backlight：White LED，8 LEDs，4 LED in series in 2 group
