Product specifications
KD034WVFID003

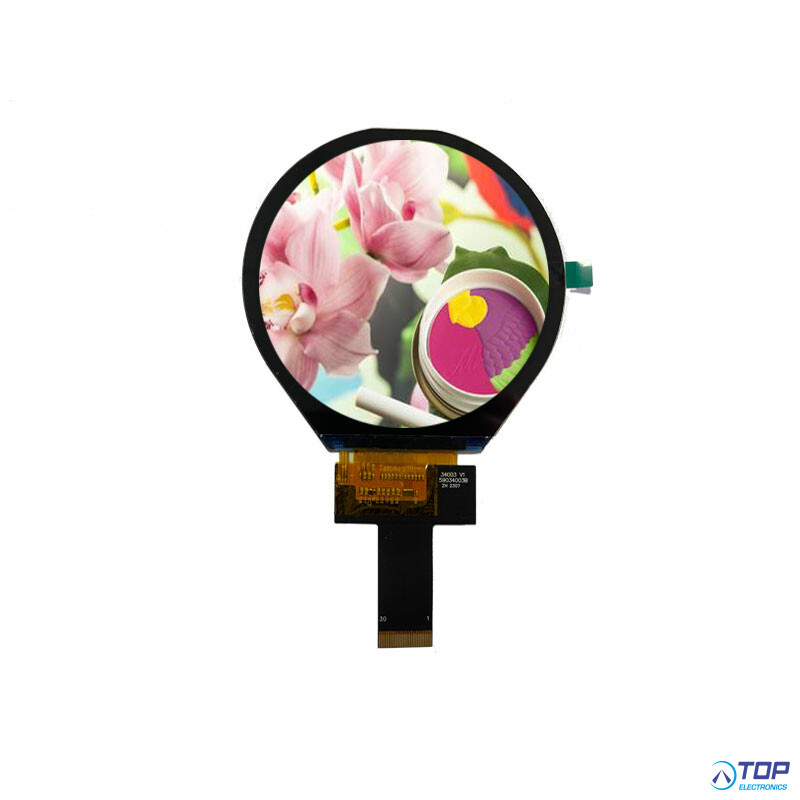

Startek 3.4" IPS Display Round
1.Product Name：3.4 inch 800*800 ILI9881C round IPS LCD display module with MIPI interface
2.Part No.：KD034WVFID003
3.Size：3.4 inch
4.Touch type：without
5.Display Type：IPS
6.Display colors：16.7M
7.Resolution：800×800
8.Pixel Pitch：0.1095×0.1095mm
9.Viewing angle：ALL
10.Controller IC：ILI9881C
11.Display mode：Transmissive/Normally Black
12.Overall size：94.9×96.95×2.18mm
13.Viewing area：
14.Active area：87.6×87.6mm
15.Luminance：430cd/m2
16.Contrast：1200
17.Interface：4Lane MIPI
18.Pin No.：30PIN
19.Pin Pitch：0.5mm
20.Connecting type：plugging type
21.Input voltage：3.3V
22.Backlight type and color：LED backilght/white
23.Backlight：2 groups in parallel，4 LED in series in each group
24.Life span：50000h
25.Operating temperature：-20~+70°C
26.Storage temperature：-30~+80°C
27.Certification of registration：ISO9001 ISO13485 ISO14001 IATF16949
28.Compliant：ROHS
