Product specifications
KD035QVFMA064

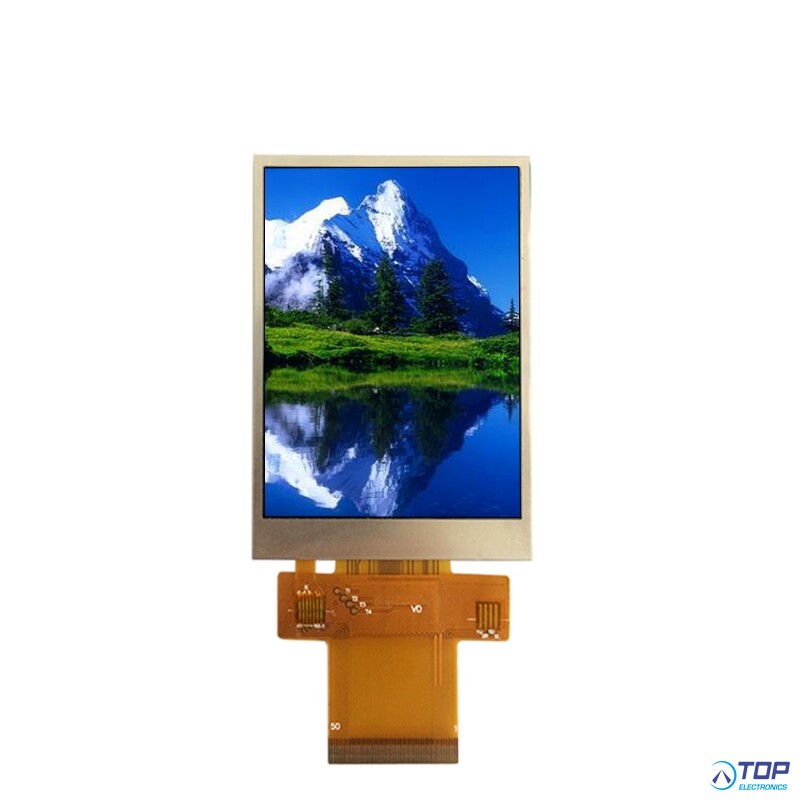

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 320*480, HX8347A, full viewing angle, sunlight readable, 8/16/18MCU, interface IPS LCD module
2. Part No.: KD035QVFMA064
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K
7. Resolution (pixels): 240 (RGB)*320
8. Pixel pitch: 0.222 (H) x 0.222(V)
9. Viewing direction: ALL (160O)
10. Controller IC: HX8347A
11. Display mode: Transmissive Normally Black
12. Overall size: 63*85*3mm
13. Viewing area:
14. Active Area: 53.28*71.04mm
15. Luminance: 500cd/m2
16. Contrast: 800
17. Interface type: 8/9/16/18 BIT MCU 3 SPI+16/18 BIT RGB interface 3 line serial
18. Pin NO.: 50pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 8 LED parallel, common anode If=120-160mA, Vf =3.2V
24. LED Life span: 50000h
25. Operating temperature range: -30----85 °C
26. Storage Temperature range: -40----90°C
27. Certification of registration: ISO9001 ISO/TS16949
28. Compliant: RoHS
