Product specifications
KD035HVFMD137

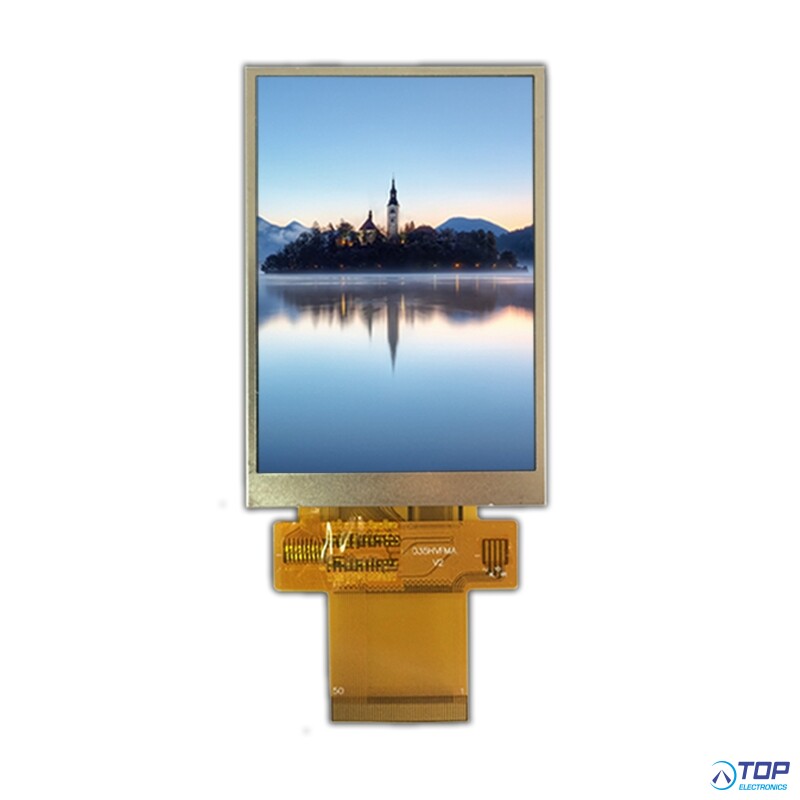

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 320*480, ST7796S, full viewing angle, sunlight readable, 8/9/16/18MCU, 16/18 RGB, 3/4 SPI interface IPS LCD module
2. Part No.: KD035HVFMD137
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K
7. Resolution (pixels): 320 (RGB)*480
8. Pixel pitch: 0.153 (H) x 0.153 (V)
9. Viewing direction: ALL (160O)
10. Controller IC: ST7796S
11. Display mode: Transmissive Normally Black
12. Overall size: 54.58*83.57*2.18mm
13. Viewing area:
14. Active Area: 48.96*73.44mm
15. Luminance: 600cd/m2
16. Contrast:1000
17. Interface type: 8080 8/9/16/18bit MCU interface
3/4 SPI +16/18bit RGB interface
3/4 line serial interface
18. Pin NO.: 50pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 8 LED parallel, common anode If=120-160mA, Vf =3.2V
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80°C
27. Certification of registration: ISO9001 ISO13485 IATF16949
28. Compliant: RoHS
