Product specifications
KD035VGFIA111A-01

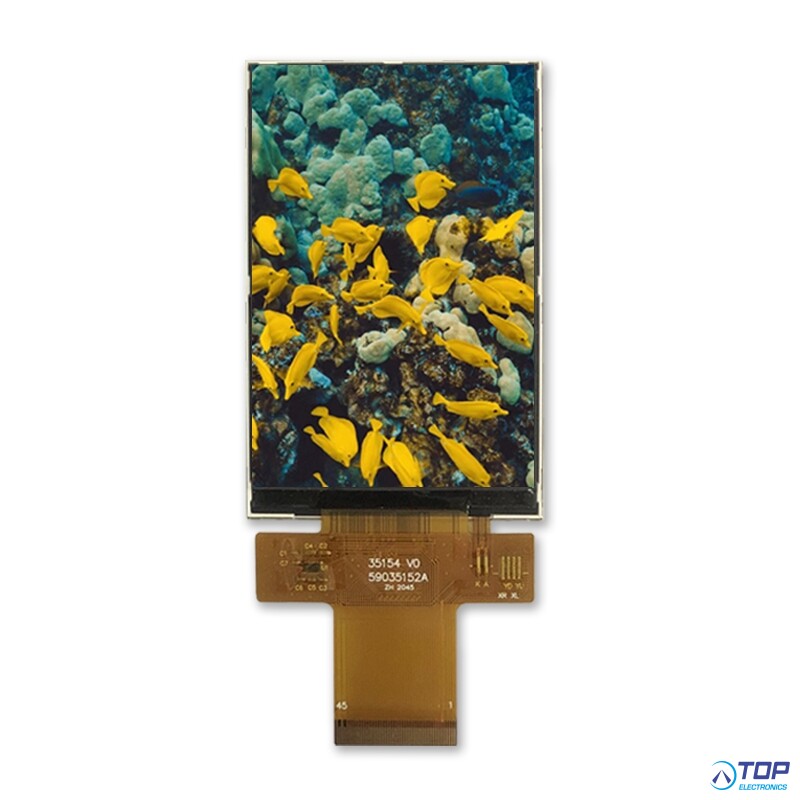

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 480*640, ILI9806E, VA LCD, 1MIPI interface LCD module
2. Part No.: KD035VGFIA111A-01
3. Other model Part No. KD035VGFIA111
4. Compatible part No.:
5. Display type: TFT
6. Display colors: 65/262K/16.7M
7. Resolution (pixels): 480*640
8. Pixel pitch: 0.1116(H) x 0.1116 (V)
9. Viewing direction: All
10. Controller IC: ILI9806E
11. Display mode: VA Normally black
12. Overall size: 64.0*85.0*3.10mm
13. Viewing area:
14. Active Area: 53.28*71.04mm
15. Luminance: 1600cd/m2
16. Contrast: 700
17. Interface type: MIPI
18. Pin NO.: 20pins
19. Pin pitch: 0.5mm
20. Connecting type: FPC socker
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 12LED If=40mA, Vf =18.6V
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80°C
27. Certification of registration: ISO9001 TS16949 ISO13485
28. Compliant: RoHS
