Product specifications
KD035VGFID162

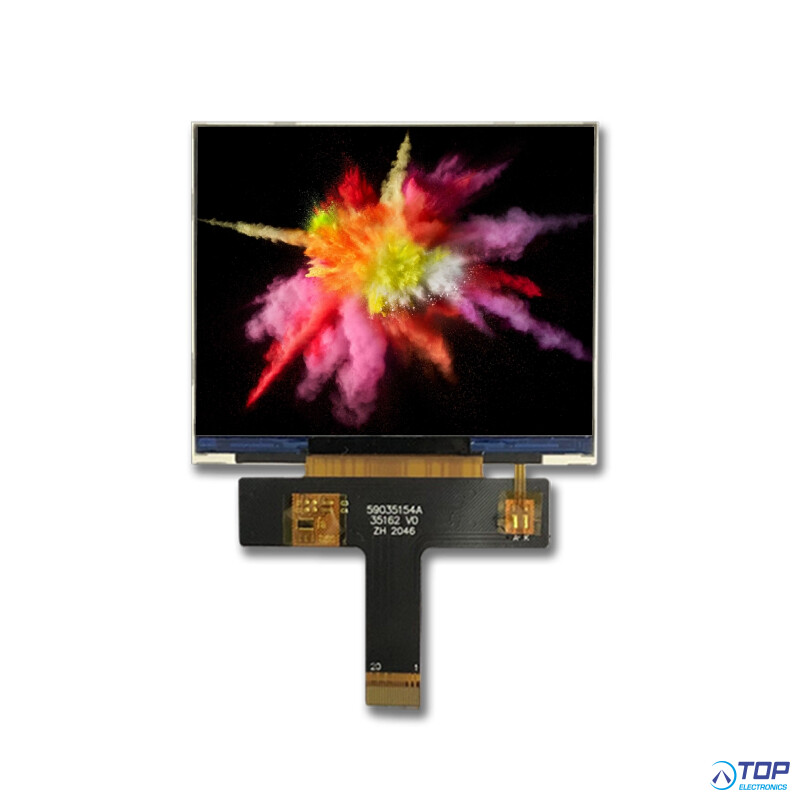

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 640*480, ST7703, TFT lcd dsiplay, 2LANE MIPI - IPS LCD module
2. Part No.: KD035VGFID162
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K/16.7M colors
7. Resolution (pixels): 640*480
8. Pixel pitch: 0.1095(H)*0.1095(V)
9. Viewing direction: All
10. Controller IC: ST7703
11. Display mode: Transmissive Normally Black
12. Overall size: 74.38*62.35*2.43 mm
13. Viewing area:
14. Active Area: 70.08*52.56mm
15. Luminance: 740nits
16. Contrast: 500
17. Interface type: 2LANE MIPI
18. Pin NO.: 20pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 6 LEDs in series and 2 Groups in parallel If=40mA Vf =19.2V
24. LED Life span: 50000h
25. Operating temperature range: -30～+85
26. Storage Temperature range: -30～+85
27. Certification of registration: ISO9001 ISO13485 TS16949.
28. Compliant: RoHS
