Product specifications
KD035WVFPD122

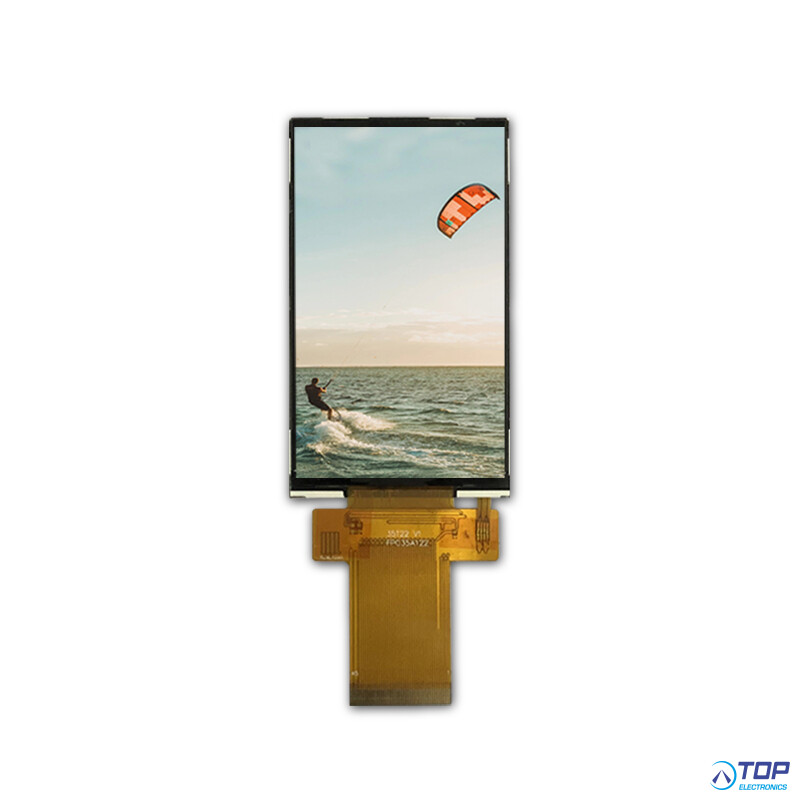

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 480*800, ST7701S, full viewing angle, 3SPI+RGB interface IPS LCD module
2. Part No.: KD035WVFPD122
3. Another model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 16.7M
7. Resolution (pixels): 480 (RGB)*800
8. Pixel pitch: 0.0945 (H) x 0.0945 (V)
9. Viewing direction: ALL
10. Controller IC: ST7701S
11. Display mode: Transmissive Normally Black
12. Overall size: 50.16*86.3*2.3mm
13. With capacitive or not: Not
14. Active Area: 45.36*75.6mm
15. Luminance: 450cd/m2
16. Contrast: 650
17. Interface type: 3SPI+RGB MIPI interface
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 7 LED If=15-20mA, Vf =21V
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80°C
27. Certification of registration: ISO9001 ISO13485 IATF16949.
28. Compliant: RoHS
