Product specifications
KD035QHFPD154

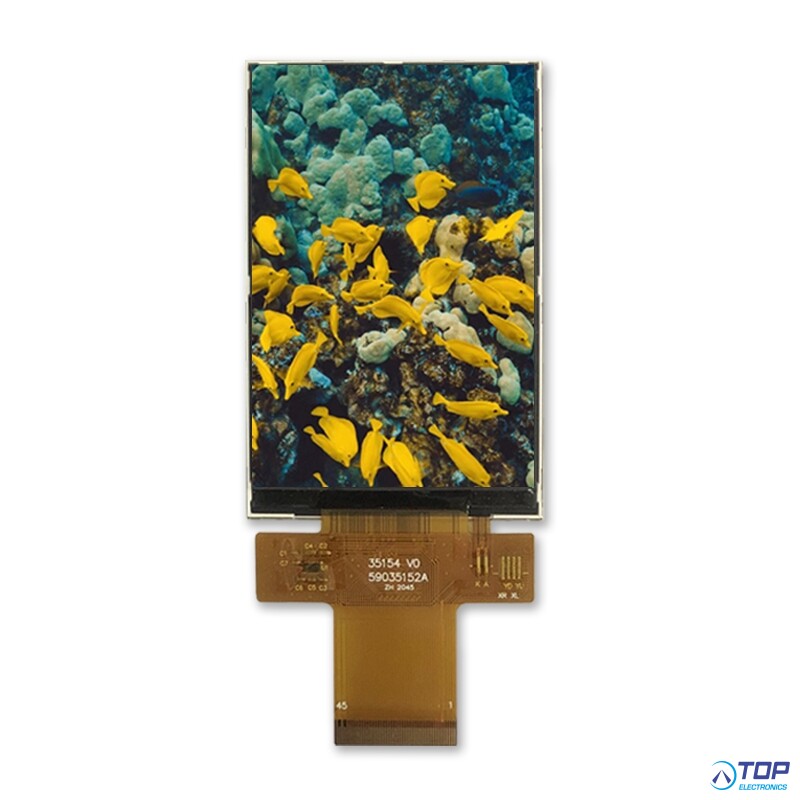

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 640*960, NV3052CGRB, TFT lcd dsiplay, SPI+RGB IPS LCD module
2. Part No.: KD035QHFPD154
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K/16.7M colors
7. Resolution (pixels): 640*960
8. Pixel pitch: 0.078(H)*0.078(V)
9. Viewing direction: All
10. Controller IC: NV3052CGRB
11. Display mode: Transmissive Normally Black
12. Overall size: 54.58*84.42*2.55 mm
13. Viewing area:
14. Active Area: 49.92*74.88mm
15. Luminance: 500nits
16. Contrast: 500
17. Interface type: SPI+RGB
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 5 LEDs in series and 2 Groups in parallel If=40mA Vf =15V
24. LED Life span: 50000h
25. Operating temperature range: -30～+85
26. Storage Temperature range: -30～+85
27. Certification of registration: ISO9001 ISO13485 TS16949
28. Compliant: RoHS
