Product specifications
KD035VGFPA094A

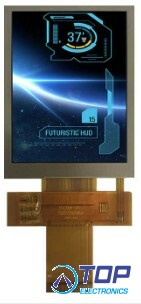

Startek 3.5" Display Blanview
Specifications:
1. LCD name: 3.5 inch 480*640, ILI9806E, sunlight readable LCD, 3SPI+16/18/24BIT RGB VA LCD module
2. Part No.: KD035VGFPA094A
3. Other model Part No.
4. Compatible part No.:
5. Display type: TFT
6. Display colors: 65K/262K/16.7M
7. Resolution (pixels): 480*640
8. Pixel pitch: 0.111(H)*0.111(V)
9. Viewing direction: All
10. Controller IC: ILI9806E
11. Display mode: Transmissive Normally black
12. Overall size: 64.00*85.00*3.10mm
13. Viewing area: 56.4*74.4mm
14. Active Area: 53.28*71.04mm
15. Luminance: 700cd/m2
16. Contrast: 700
17. Interface type: 3 SPI +16/18bit RGB interface
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: FPC socket
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: 6 LED in serial If=20mA, Vf =18.6V
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80°C
27. Certification of registration: ISO9001 TS16949 ISO13485
28. Compliant: RoHS
