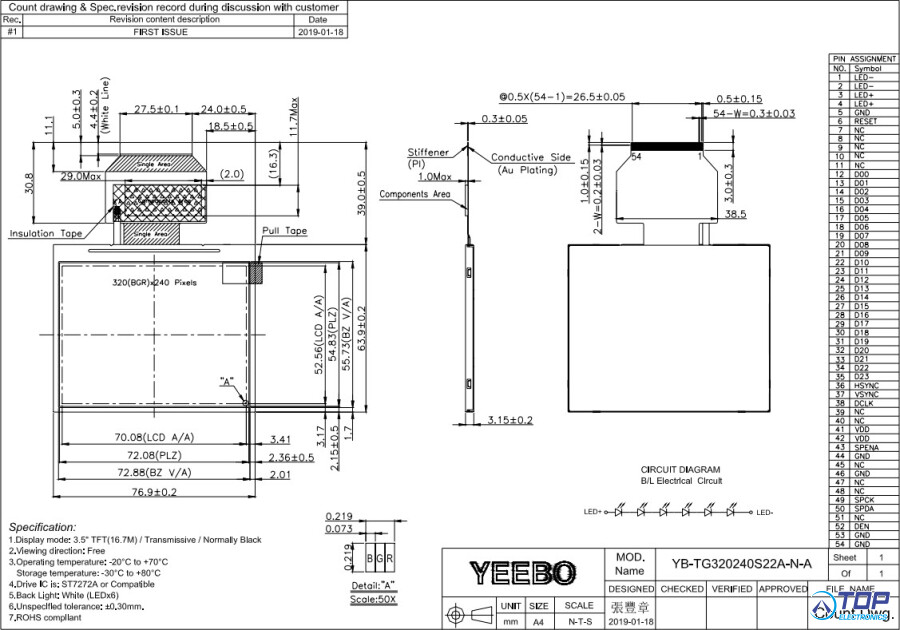

Product specifications

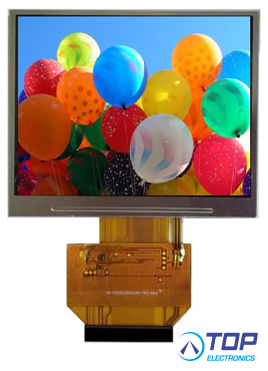

YB-TG320240S22A-N-A0
Display TFT 3.5", IPS, Ser/Par, 500nits
General Specification
Module Size: 76.9 (W) * 63.9 (H) * 3.15(T) mm
Module Size(With FPC): 76.9 (W) *102.9 (H) * 3.15(T) mm
Display Size(Diagonal): 3.5 inch
Display Format: 320(BGR) * 240 Pixels
Active Area: 70.08(W) * 52.56(H) mm
Pixel Pitch: 0.219 * 0.219 mm
LCD Type: TFT(262K) / Transmissive/NB
Viewing Direction: Free(IPS)
Controller IC: ST7272A
Interface: Serial / Parallel
Brightness: 500 nits
Weight 26.8g
