Product specifications
KD038HDFPD002-C001A

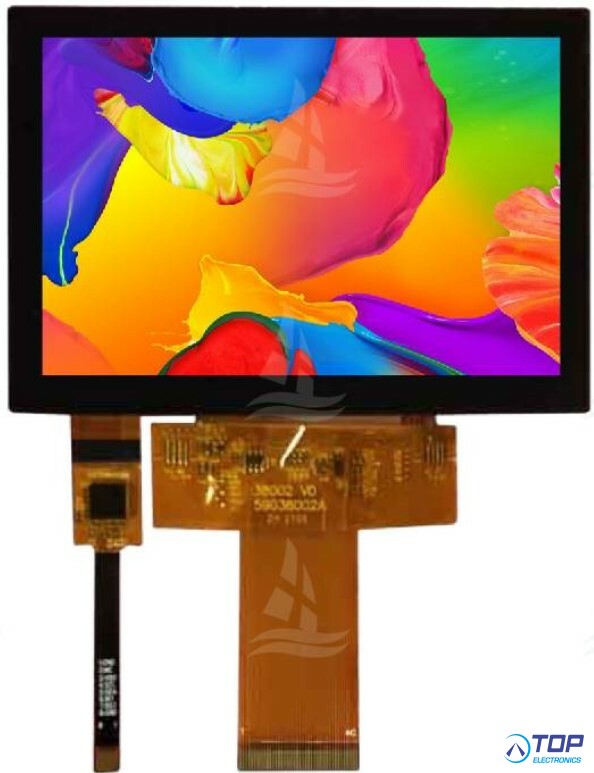

Startek 3.8" IPS Display
1. LCD name: 3.8 inch IPS TFT 1024*600, JD9168, RGB interface, high brightness, LCD with build-in capacitive touch panel
2. Part No.: KD038HDFPD002-C001A
3. Size.: 3.8 inch
4. With touch panel or not: Yes
5. Touch type: Capacitive
6. Display type: IPS
7. Display colors: 16.7M
8. Resolution (pixels): 1024(RGB)*600
9. Pixel pitch: 0.0807(H)*0.0807(V)
10. Viewing direction: All
11. Controller IC: JD9168
12. Display mode: Transmissive/ Normally Black
13. Overall size: 97.92*67.93*4.81mm
14. Viewing area:
15. Active Area: 82.64*48.42mm
16. Luminance: 810cd/m2
17. Contrast: 1000
18. Interface type: 16/18/24 RGB
19. Pin NO.: 40pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 14 LED in series 2 groups in parallel ,7 LED in series in each group If=40mA, Vf =19.6 V
25. Life span: 50000h
CTP Feature:
26. Principle: Projective
27. Transparency: ≥85%
28. Haze: ≤3%
29. Hardness: ≥6H
30. Screen: TX12*RX7
31. Touch point: 5
32. Structure: G+G
33. Outline size: 97.92*67.93mm
34. VA size: 83.63*49.42 mm
35. Driver IC: GT911
36. Interface: IIC
37. Connected type: Socket
38. Pin NO.: 8
39. Pin pitch: 0.5 mm
40. Operating system support: Linux, Android
41. Input voltage: 3.3V
42. Operating temperature range: -20 -- 70 °C
43. Storage Temperature range: -30 -- 80°C
44. Compliant: RoHS
45. Certification of registration: ISO9001:2015 ISO13485:2016 TS16949:2015
