Product specifications
TMCM-3212-TMCL
3-axis stepper motor controller/driver, 3.0A, 48V

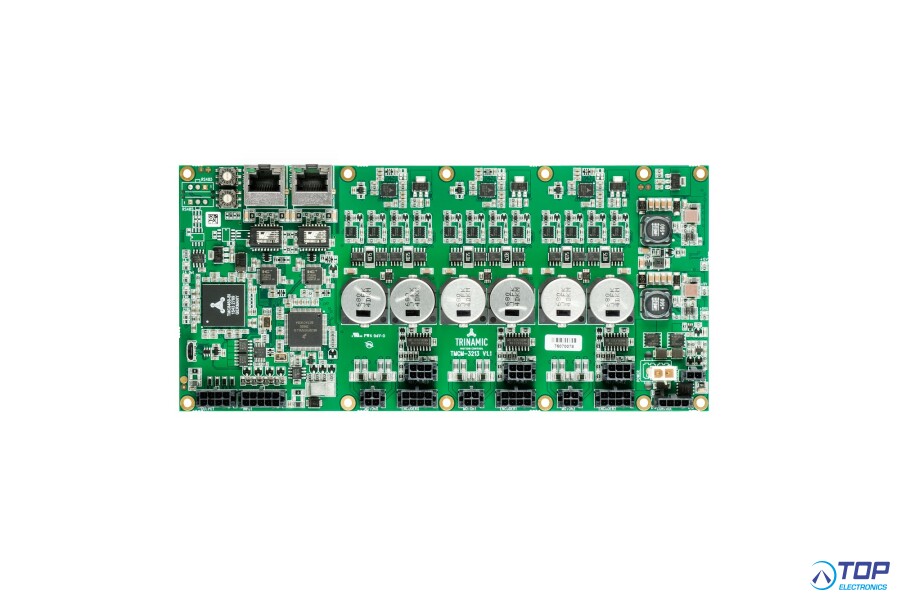

The TMCM-3212 is a triple axis stepper motor controller/driver module for sensorless load dependent current control.
The device is powered by Trinamic StallGuard2™, CoolStep™, SpreadCycle™, StealthChop™ and DcStep™ technology and has a SixPoint™ ramp generator. The TMCM-3212 is capable of driving up to 4.2A of current from each output (with proper heatsinking). It is designed for an operating voltage of 17...53V. The device provides a RS485, CAN, USB and 3 encoder interfaces.
An integrated protocol processor supplies a high level TMCL/ CANopen communication.
- TRINAMIC Motion Control product -
