Product specifications
KD040WXFPD014

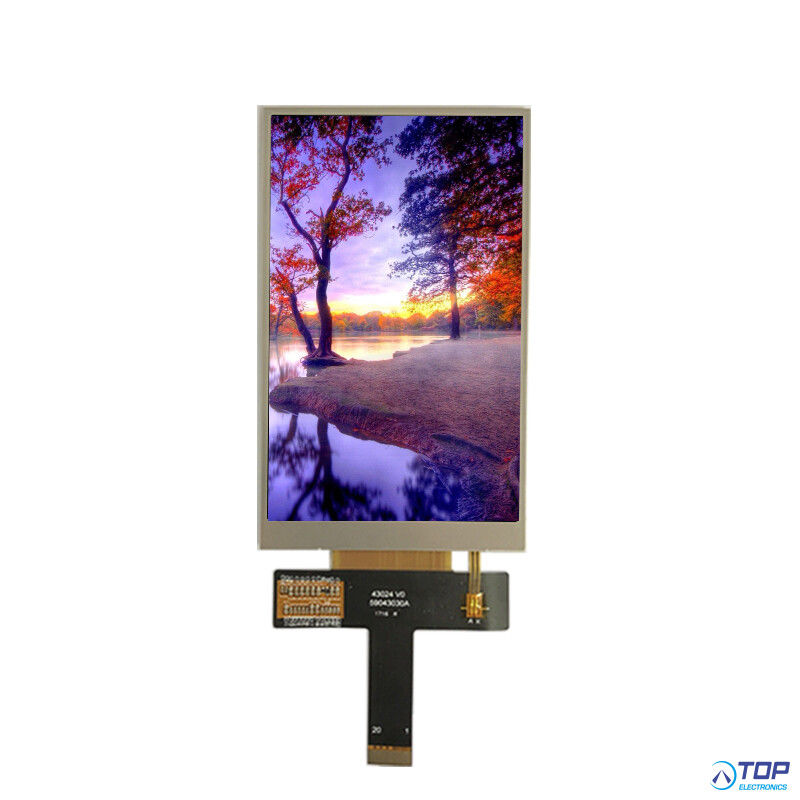

Startek 4.3" IPS Display
Specifications:
1. LCD name: 4.3 inch 480*800, ILI9806E, MIPI interface, full viewing angle, high brightness IPS LCD
2. Part No.: KD043WVFIA083
3. Compatible part No.:
4. Size.: 4.3 inch
5. With touch panel or not: No
6. Display type: IPS
7. Display colors: 65K/262K/16.7M
8. Resolution (pixels): 480(RGB)*800
9. Pixel pitch: 0.117(H)*0.117(V)
10. Viewing direction: ALL (170O)
11. Controller IC: ILI9806E
12. Display mode: Transmissive Normally black
13. Overall size: 62.50*105.55*2.65mm
14. Viewing area: 58.56*96.32mm
15. Active Area: 56.16*93.6mm
16. Luminance: 450cd/m2
17. Contrast: 1300
18. Interface type: MIPI interface
19. Pin NO.: 20pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 8 LED in series Vled =12.8V, Iled=40mA
25. Life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -30----80 °C
28. Certification of registration: ISO9001:2015 ISO13485:2016 TS16949:2015
29. Compliant: RoHS
