Product specifications

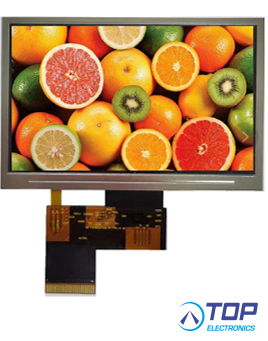

YB-TG480272S17A-N-A0
Display TFT 4.3", IPS, Parallel, 700nits

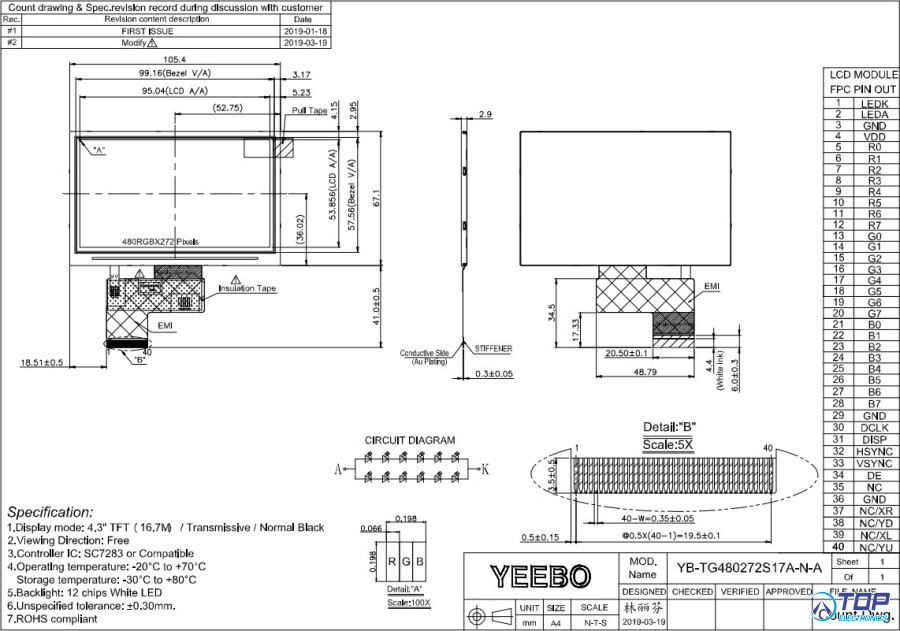

General Specification
Module Size: 105.4 (W) *67.1 (H) *2.9 (T) mm
Module Size(With FPC): 105.4 (W) * 108.1(H) * 2.9(T) mm
Display Size(Diagonal): 4.3 inch
Display Format: 480(RGB)* 272 Pixels
Active Area: 95.04(W) * 53.856(H) mm
Dots Pitch: 0.198*0.198 mm
LCD Type: TFT (16.7M)/ Transmissive / Normal Black
Viewing Angle: Free (IPS)
Controller IC: SC7283
Interface: Parallel
Brightness: 700 nits
Weight: 37.7g
