Product specifications
KD043WQFPA042

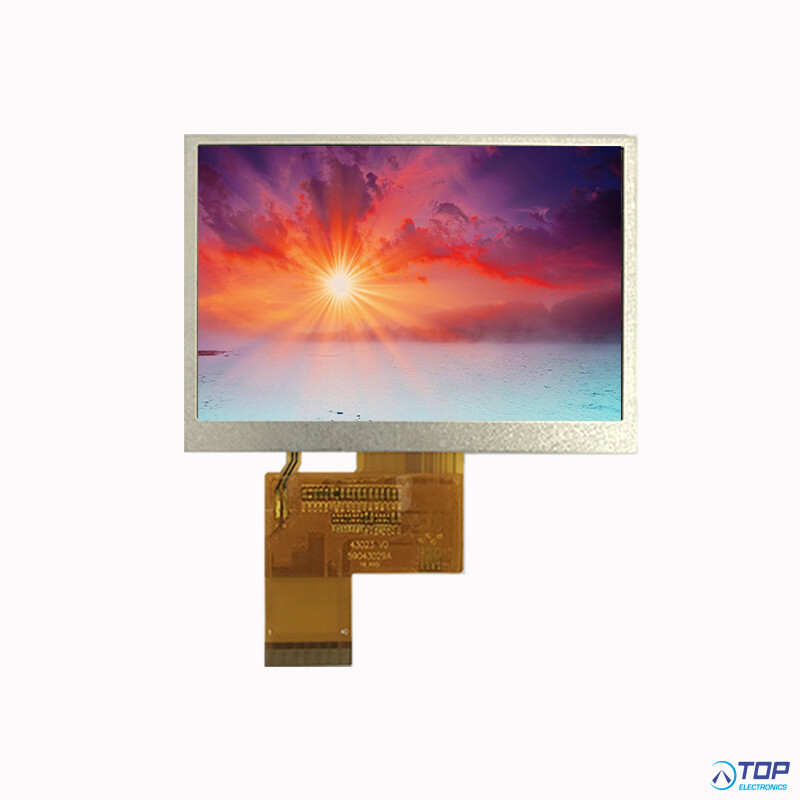

Startek 4.3" Wide Temperature Display
Specifications:
1. LCD name: 4.3 inch 480*272, full viewing angle landscape SC7283, 8/24 bit RGB interface, high brightness, wide temperature
2. Part No.: KD043WQFPA042
3. Compatible part No.:
4. Size.: 4.3 inch
5. With touch panel or not: No
6. Display type: TFT
7. Display colors: 16.7M
8. Resolution (pixels): 480(RGB)*272
9. Pixel pitch: 0.198 (H) x 0.198 (V)
10. Viewing direction: ALL
11. Controller IC: SC7283
12. Display mode: Transmissive Normally black
13. Overall size: 105.4*67.15*2.85mm
14. Viewing area: 98.80*57.70mm
15. Active Area: 95.04*53.86mm
16. Luminance: 900cd/m2
17. Contrast: 800
18. Interface type: 8/24 bit RGB
19. Pin NO.: 40pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.2V
23. Backlight type and color: LED backlight/white
24. Backlight: 10 LED, 2 groups in parallel, 5 in series in each group Vled =16.0V, Iled=40mA
25. Life span: 50000h
26. Operating temperature range: -30----85 °C
27. Storage Temperature range: -40----90 °C
28. Certification of registration: ISO9001:2015 ISO13485:2016 TS16949:2009
29. Compliant: RoHS
