Product specifications

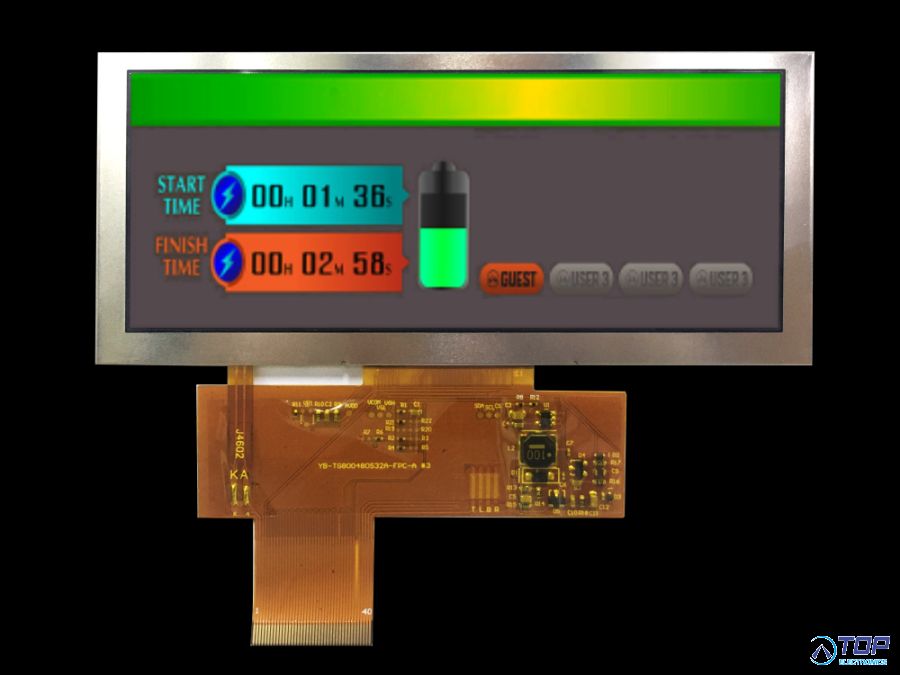

YB-TG800320S01A-N-A
4.6", Bar type TFT, Parallel, 350nits
General Specification

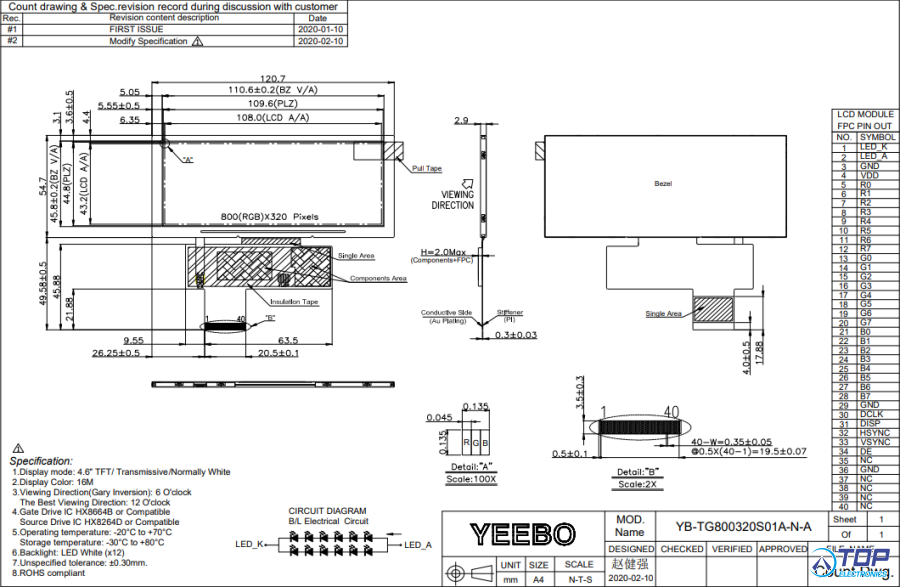

Module Size: 120.7 (W) * 54.7 (H) * 2.9(T) mm
Module Size(With FPC): 120.7 (W) * 104.28 (H) * 2.9(T) mm
Display Size(Diagonal): 4.6 inch
Display Format: 800(BGR) * 320 Pixels
Active Area: 108.0 (W) * 43.2 (H) mm
LCD Type: Active Matrix TFT/ Transmissive
Viewing Direction (gray inversion): 6 O' clock
Best Viewing Direction: 12 O' clock
Source Drive IC: HX8264D or Compatible
Gate Drive IC: HX8664B or Compatible
Interface: Parallel
Brightness: 350 nits
Weight: TBD
