Product specifications
ERF4066

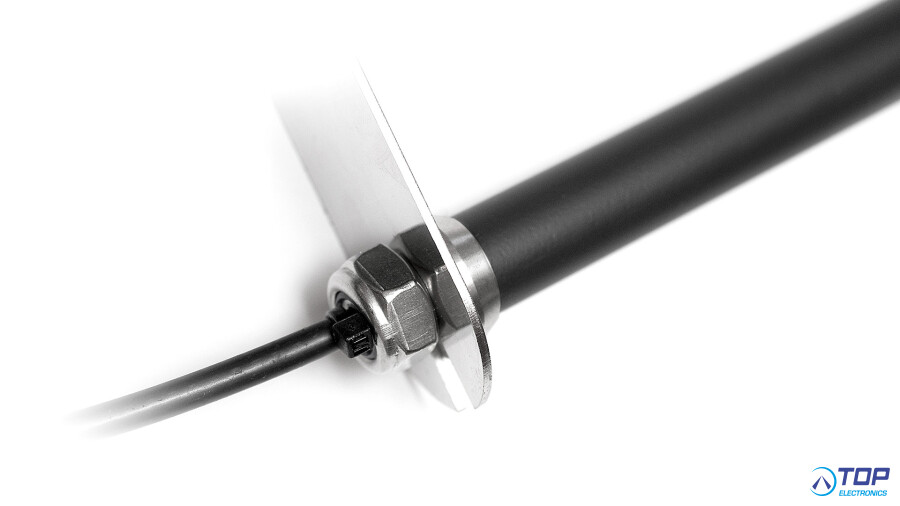

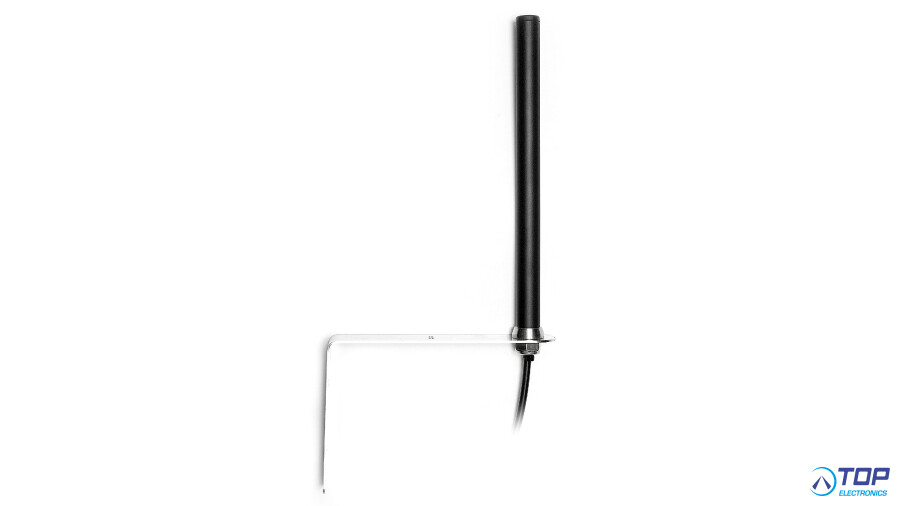

The ERF4066 Antenna is a 433 MHz antenna with a SMA (Male) connector.
The antenna can also be used in the frequency band of : 1000 MHz / 1400 MHz and 1800~1900 MHz
The antenna can be used for applications , such as M2M and 433 MHz applications.
Electrical Properties
Frequency Band: 433 MHz / 1000 MHz / 1400 MHz / 1800 ~1900 MHz
Nominal Impedance: 50 ?
Polarization: Linear
V.S.W.R: <2.0
Gain: 2 dBi
Mechanical Properties
Antenna Type: External Antenna
Connector Type: SMA male
Antenna Dimensions: 50.2 mm ±1.5
Antenna color: Black
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
