Product specifications

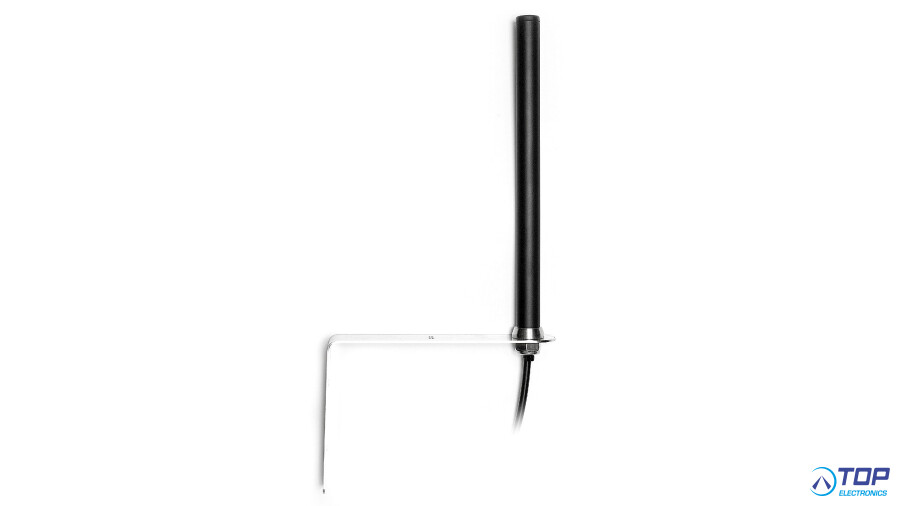

2J2115B-433-B05H Antenna
433 MHz ISM Omni-Directional Ground Plane Independent Antenna

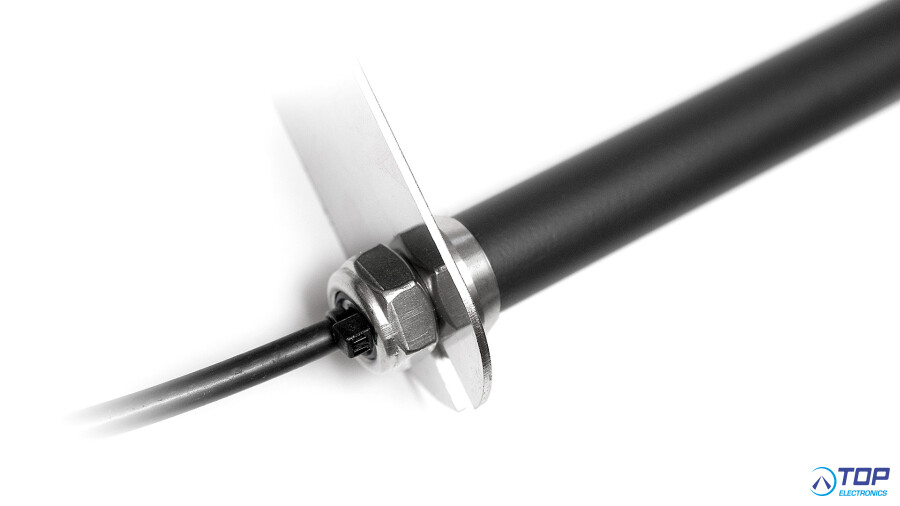

Mounting Wall Mount
Dimensions (mm) 325 × 36 × 155 (220 × Ø 16)
Operating temperature -40 °C to +85 °C
Certificates IP67
Standard color Black
Standards ISM, LoRa
Frequency 433-435
VSWR ~2.0:1
Efficiency (%) ~53.0
Peak Gain (dBi) ~2.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
