Product specifications
2JP0615P

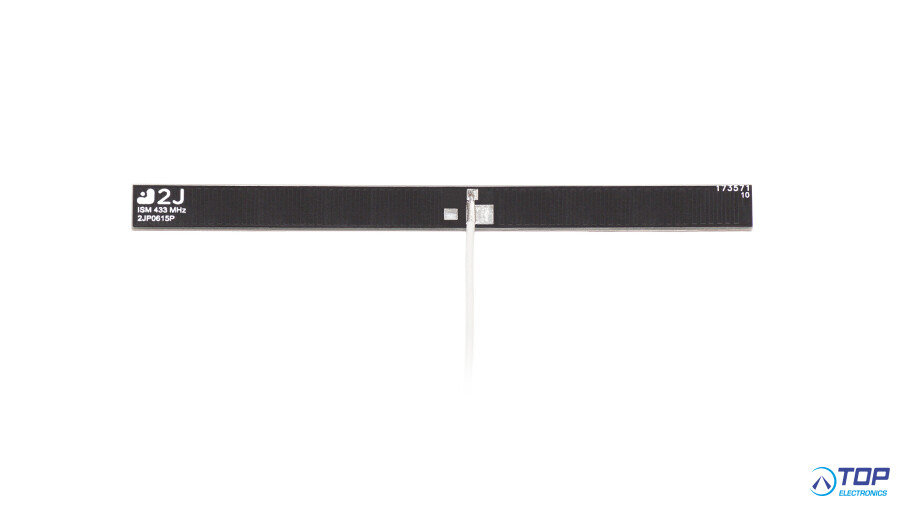

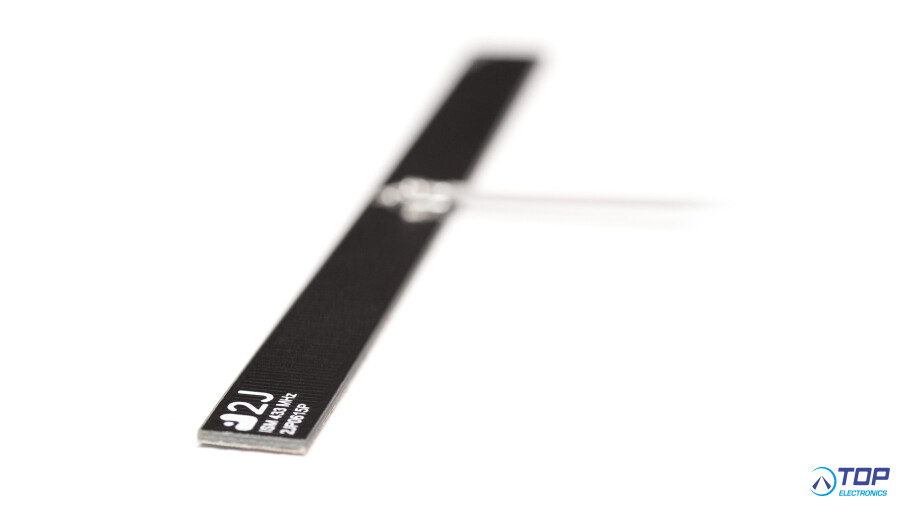

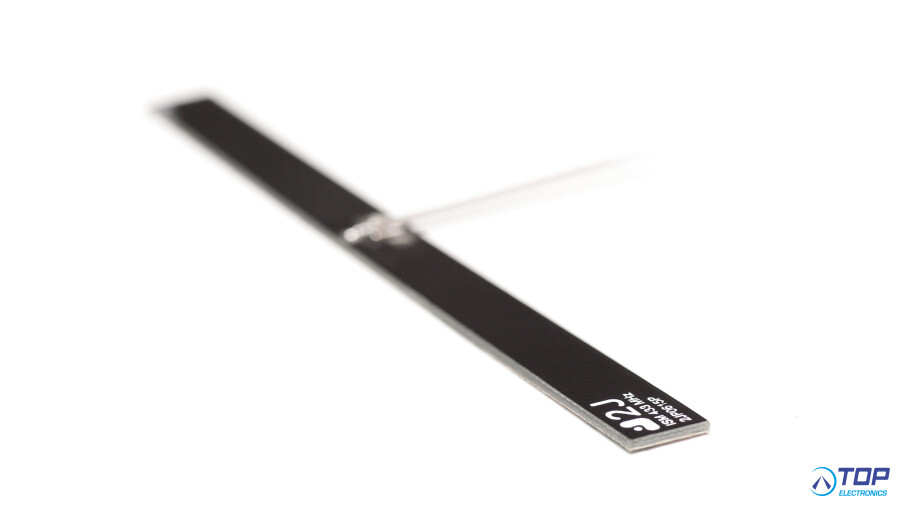

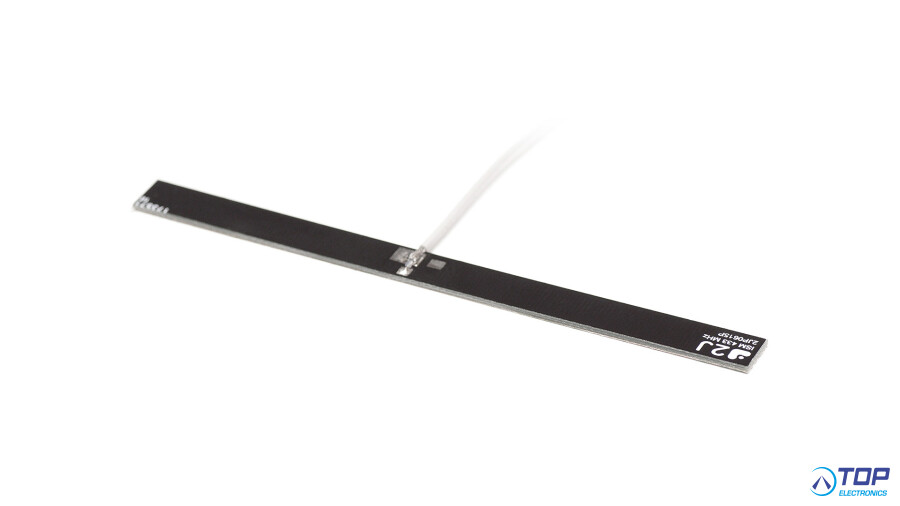

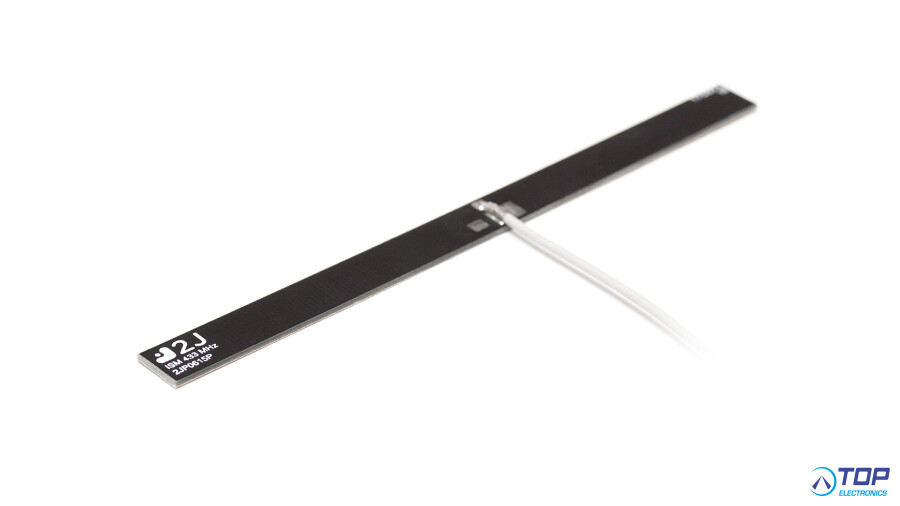

433 MHz ISM Ground Plane Independent Rigid Embedded Antenna
General Specification
Frequency: 433MHz/Sigfox/LoRa/LPWA/RFID/ISM
Mounting: Adhesive Mount Rigid
Dimensions (mm): 104 x 8.5 x 0.8
Operating temperature: -40 °C to +85 °C
Antenna and electrical specifications
433 MHz ISM
Standards: ISM, LoRa
Frequency: 433-435
VSWR: ~1.1:1
Efficiency (%): ~32.6
Peak Gain (dBi): ~-2.6
Impendance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
