Product specifications
YC0001AA

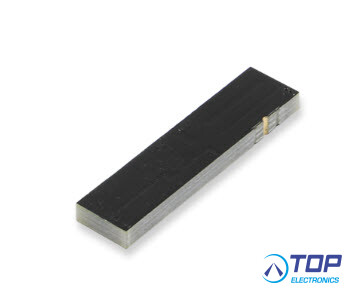

4G Ceramic SMD Antenna
This is a wideband LTE/cellular/CDMA SMT antenna suitable for 4G/3G/2G applications. Operating at 698-960MHz and 1710-2690MHz it's a high-efficiency antenna which is mounted to the device host PCB using conventional PCB reflow process. Ideal for all 4G/LTE applications, it also supports worldwide Cat M and NB-IoT frequency bands too. Supplied on tape and reel for high-volume applications. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- PCB SMD mount IoT antenna
- Optimized for 4G LTE networks
Frequency range: 698–960MHz, 1710–2690MHz
Dimensions: 35.0mm × 8.5mm × 3.0mm
SMD – supplied tape and reel
Peak efficiency: 60%
RoHS and REACH compliant
- Quectel Wireless Solutions product -
