Product specifications
YF0006DA

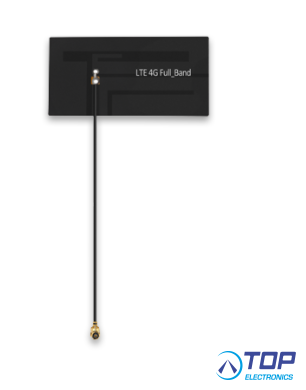

4G FPC Antenna
This wideband LTE/cellular/CDMA FPC antenna is suitable for 4G/3G/2G applications. Ground plane independent, it's designed for flexible mounting on the underside of any non-metallic housing with a cable and connector for easy installation. As well as 4G/LTE applications, it also supports worldwide Cat M and NB-IoT frequency bands too. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Optimized for 4G/LTE/LTE-M/NB-IoT networks
- Flexible 'peel & stick' antenna
- IPEX MHF I connector
- Ground plane independent
Frequency band: 690–2700MHz
Peak efficiency: 89%
Dimensions: 50mm × 25mm × 0.13mm
Cable length: 75mm
RoHS and REACH compliant
