Product specifications
YE0013AA

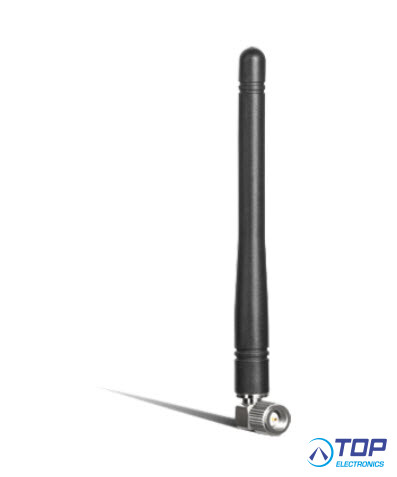

4G Terminal Mount Antenna
A robust terminal mount antenna for 4G/LTE/cellular/CDMA/3G/2G applications. The antenna is designed to work with various GND plane sizes or in free space for ease of integration with a hinged SMA (male) connector to achieve the optimum position. This omnidirectional antenna is ideally suited for access points, terminals, industrial products and routers. Quectel provides comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Optimized for 4G/LTE networks
- Terminal mounting
- 90° right-angled SMA male connector with internal thread
- IP rating: IP66
Frequency band: 700–2700Mhz
Dimensions: 115.4mm × 17.5mm × Φ10.2
- Quectel Wireless Solutions product -
