Product specifications
KD050SXFID039-C045A

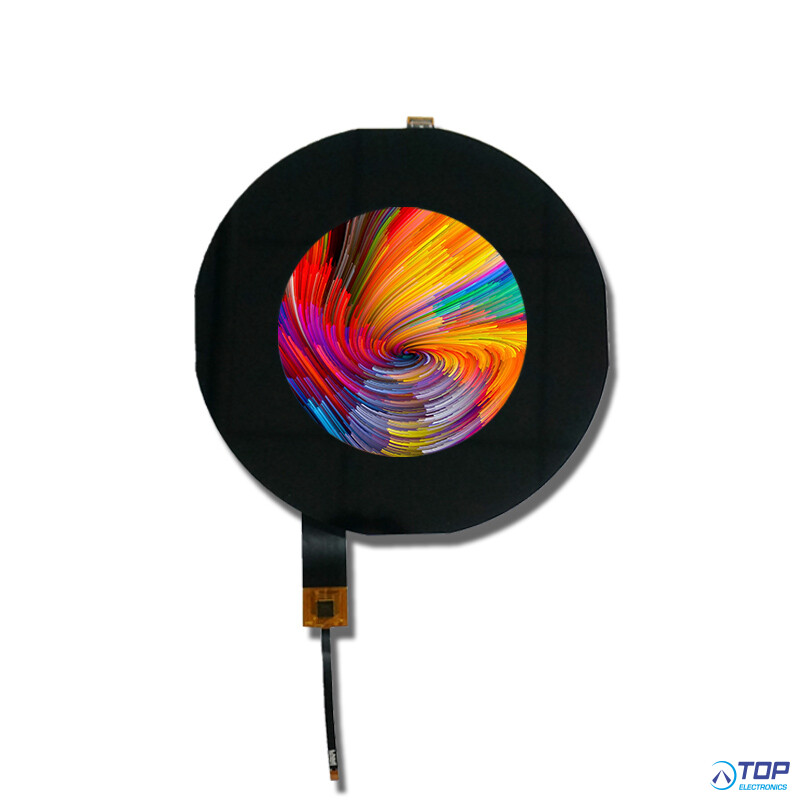

Startek 5.0" IPS Display Round
1. LCD name: KD050SXFID039 5.0 inch 1080*1080, HX8399 1/2/3/4-LANE MIPI interface, wide viewing angle IPS LCD
2. Part No.: KD050SXFID039
3. Compatible part No.:
4. Size.: 5.0 inch
5. With touch panel or not: No
6. Display type: IPS
7. Display colors: 16.7M
8. Resolution (pixels): 1080(RGB)*1080
9. Pixel pitch: 0.1176(H)*0.1176(V)
10. Viewing direction: Free
11. Controller IC: HX8399
12. Display mode: Transmissive Normally Black
13. Overall size: 136.531*132.208*1.98mm
14. Viewing area: 127.008(H)*127.008(V)mm
15. Active Area: 127.008(H)*127.008(V)mm
16. Luminance: 300cd/m2
17. Contrast: 1200
18. Interface type: 1/2/3/4-LANE MIPI
19. Pin NO.: 49pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 1.8V
23. Backlight type and color: LED backlight/white
24. Backlight: 12LED
25. Life span: 30000h
26. Operating temperature range: -20 °C----60 °C
27. Storage Temperature range: -30 °C----70 °C
28. Certification of registration: ISO9001 ISO13485 TS16949
29. Compliant: RoHS
