Product specifications
KD050FHFLD102

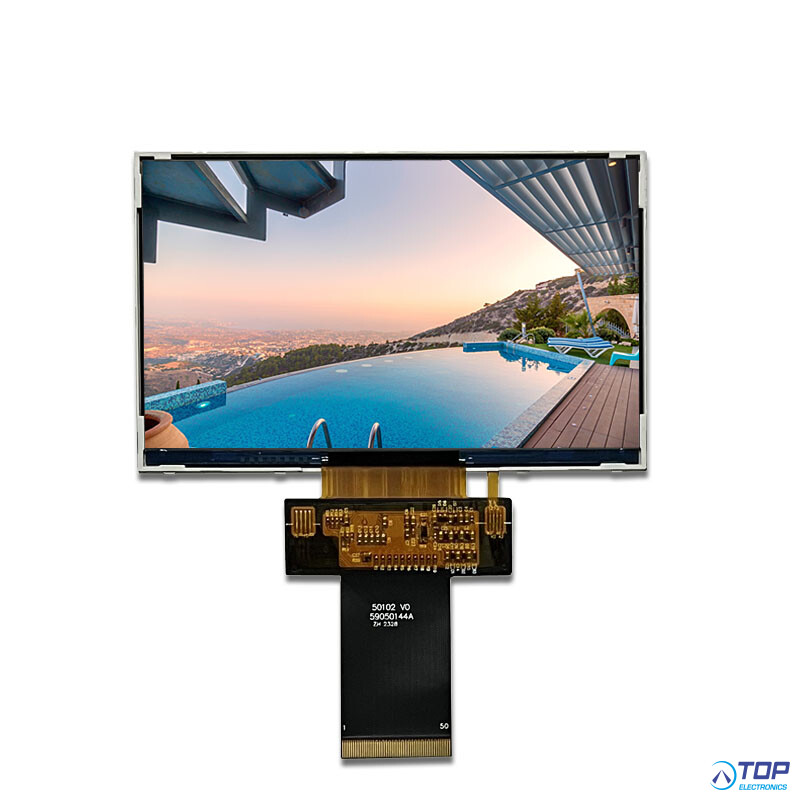

Startek 5.0" IPS Display
Specifications:
1. LCD name: 5.0 inch 1920*1080, SC5010B, full viewing angle, FHD, LTPS-LCD panel with LVDS interface
2. Part No.: KD050FHFLD102
3. Compatible part No.: NO
4. Display mode: IPS
5. Display colors: 16.7M
6. Resolution (pixels): 1920*1080
7. Pixel pitch: 0.0576(H)*0.0576(V)
8. Viewing direction: ALL
9. Controller IC: SC5010B
10. Display mode: Transmissive/ Normally Black
11. Overall size: 116.59*72.76*2.77mm
12. Active Area:110.592(H)*62.208(V)mm (5.0inch)
13. Luminance: 1000cd/m2
14. Contrast: 1000
15. Interface type:1 or 2-Port LVDS interface
16. Number of pin : 50pins
17. Pin pitch: 0.5mm
18. Connecting type: plugging type
19. Input voltage: 3.3V
20. Backlight type and color: LED backlight/white
21. Backlight: 16 LED ,2 groups in parallel, 8 in series in each group If=40mA,Vf =21.6~26.4V
22. Life span: 50000h
23. Operating temperature range: -20°C--70 °C
24. Storage Temperature range: -30°C-- 80°C
25. Compliant: RoHS
26. Certification of registration: ISO9001 ISO14001 ISO13485 IATF 16949
