Product specifications
KD050FWFPA011

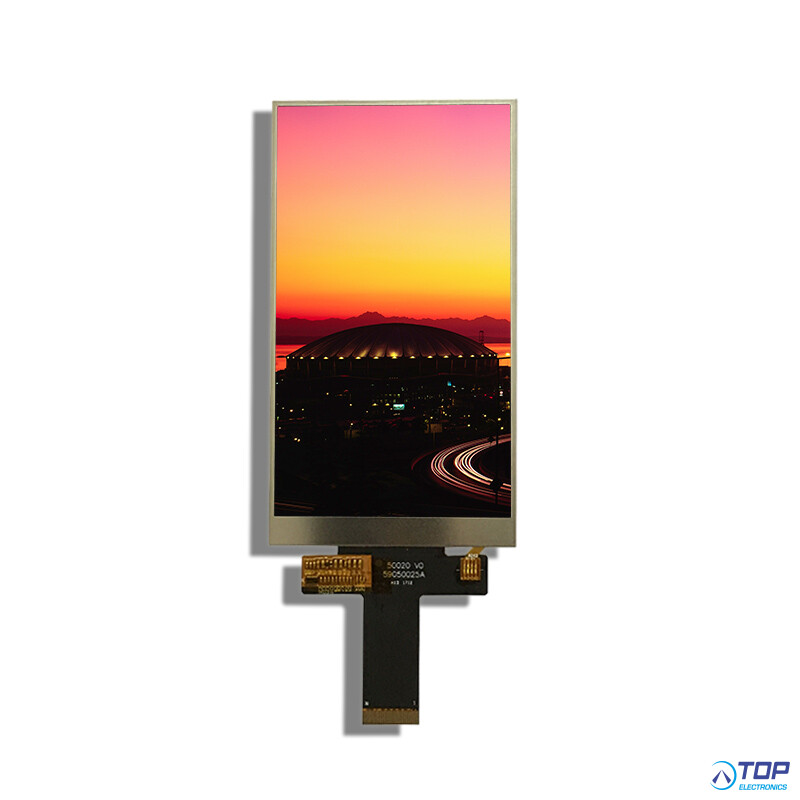

Startek 5.0" IPS Display
Specifications:
1. LCD name: 5.0 inch 480*854, ILI9806E, full viewing angle, sunlight readable, 3 SPI +16/18 RGB interface IPS LCD module
2. Part No.: KD050FWFPA011
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K/16.7M
7. Resolution (pixels): 480(RGB)*854
8. Pixel pitch: 0.1284(H)*0.1284(V)
9. Viewing direction: ALL
10. Controller IC: ILI9806E
11. Display mode: Transmissive/ Normally Black
12. Overall size: 67.56*122.35*2.6mm
13. Viewing area: 63.26*111.90 mm
14. Active Area: 61.63(H)*109.65(V) (5.0inch)
15. Luminance: 520cd/m2
16. Contrast: 800
17. Interface type: 3 wire SPI 16/18/24bit RGB interface
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: Plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: 12 LED, common anode 2 groups in parallel, 6 in series in each group If=40mA, Vf =19.2V
24. Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80 °C
27. Certification of registration: ISO9001 ISO13485 TS16949
28. Compliant: RoHS
