Product specifications
KD050HDFIA020

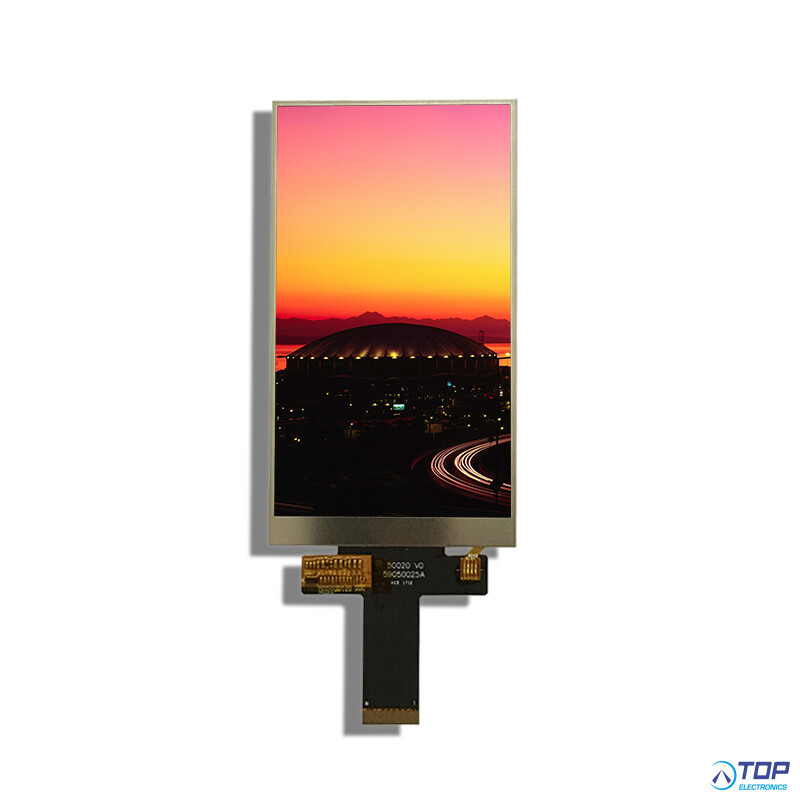

Startek 5.0" IPS Display
Specifications:
1. LCD name: 5.0 inch, 720*1280, full viewing angle with MIPI interface module IPS TFT LCD
2. Part No.: KD050HDFIA020
3. Other model Part No. NO
4. Compatible part No.: NO
5. Display mode: IPS TFT
6. Display colors: 65K/262K/16.7M
7. Resolution (pixels): 720(RGB)*1280
8. Pixel pitch: 0.08625(H)*0.08625(V)
9. Viewing direction: ALL
10. Controller IC: ILI9881C
11. Display mode: Transmissive/ Normally Black
12. Overall size: 67.56*122.35*2.6m
13. Viewing area: 63.86*112.50 mm
14. Active Area: 62.10*110.40mm
15. Luminance: 520cd/m2
16. Contrast: 800
17. Interface type: MIPI interface
18. Number of pin : 30pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: 12 LED parallel, common anode 2 groups in parallel, 6 in series in each group
If=40mA, Vf =19.2V
24. Life span: 50000h
25. Operating temperature range: -20--70 °C
26. Storage Temperature range: -30--80 °C
27. Certification of registration: ISO9001 ISO13485 TS16949
28. Quality grade: Industrial grade quality
29.LCD mode：portrait
30. Compliant: RoHS
