Product specifications
KD050WVFLA072

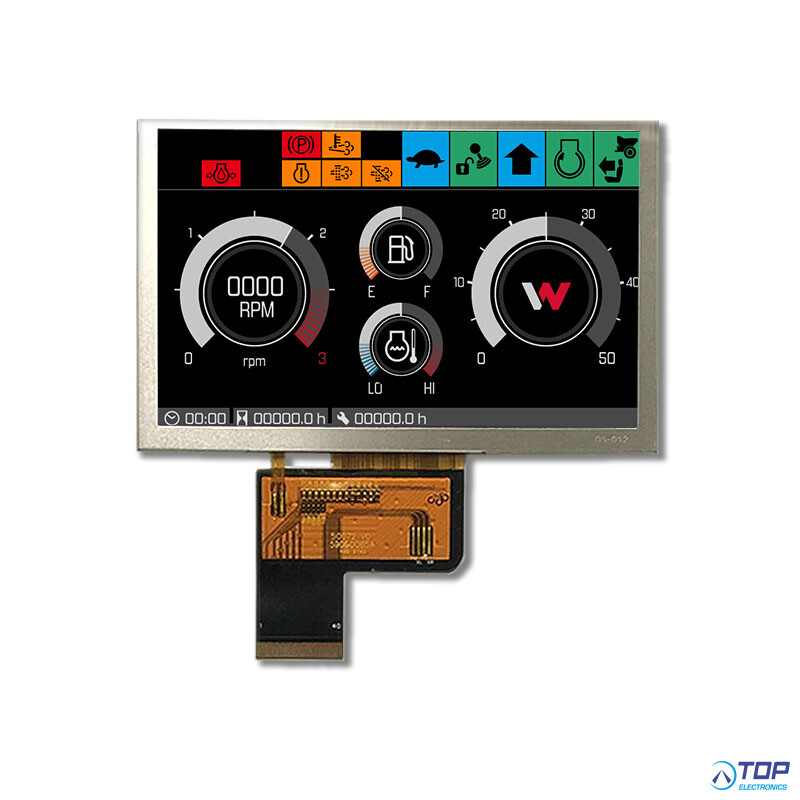

Startek 5.0" IPS Display
Specifications:
1.LCD name: 5.0 inch 800*480, ST7262, LVDS interface, wide viewing angle and wide operating temperature LCD IPS
2. Part No.: KD050WVFLA072
3. Compatible part No.:
4. Size.: 5.0 inch
5. With touch panel or not: No
6. Display type: IPS
7. Display colors: 16.7M
8. Resolution (pixels): 800*480
9. Pixel pitch: 0.135 (V) × 0.135 (H)
10. Viewing direction: Free
11. Controller IC: ST7262
12. Display mode: Transmissive Normally Black
13. Overall size: 110.8*68.1*2.95mm
14. Viewing area: 110.1*67.4mm
15. Active Area: 108.0*64.8mm
16. Luminance: 900cd/m2
17. Contrast: 1200
18. Interface type: 4-Lane LVDS
19. Pin NO.: 40pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 16LED
25. Life span: 50000h
26. Operating temperature range: -30----85 °C
27. Storage Temperature range: -30----85 °C
28. Certification of registration: ISO9001 ISO13485 TS16949
29. Compliant: RoHS
