Product specifications

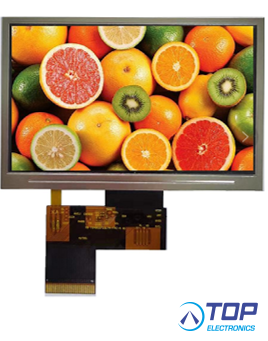

YB-TG800480S33B-N-A0
5.0" IPS, Parallel, 350nits

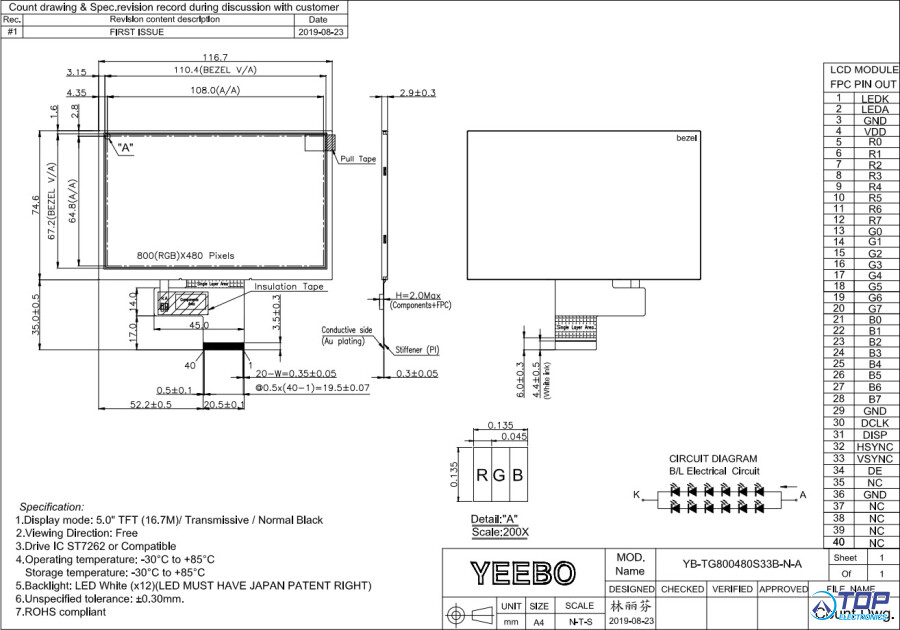

General Specification
Module Size: 116.7 (W) * 74.6 (H) * 2.9(T) mm
Module Size(With FPC): 116.7 (W) * 109.6 (H) * 2.9(T) mm
Display Size (Diagonal): 5.0 inch
Display Format: 800(RGB)* 480 Pixels
Active Area: 108 (W) * 64.8 (H) mm
Dots Pitch: 0.135 * 0.135 mm
LCD Type: TFT (16.7M)/ Transmissive / Normal White
View Angle: Free (IPS)
Controller IC: ST7262
Interface: Parallel
Brightness: 350 nits
Weight: 50g
