Product specifications
YB-YG7201280C12A-N-A
5.5″ super slim IPS, MIPI, 550nits
At only 1.7mm max thickness it readily competes with AMOLED.
1000:1 Contrast – Luminance 550 NITs – 80 deg x 4 viewing angle

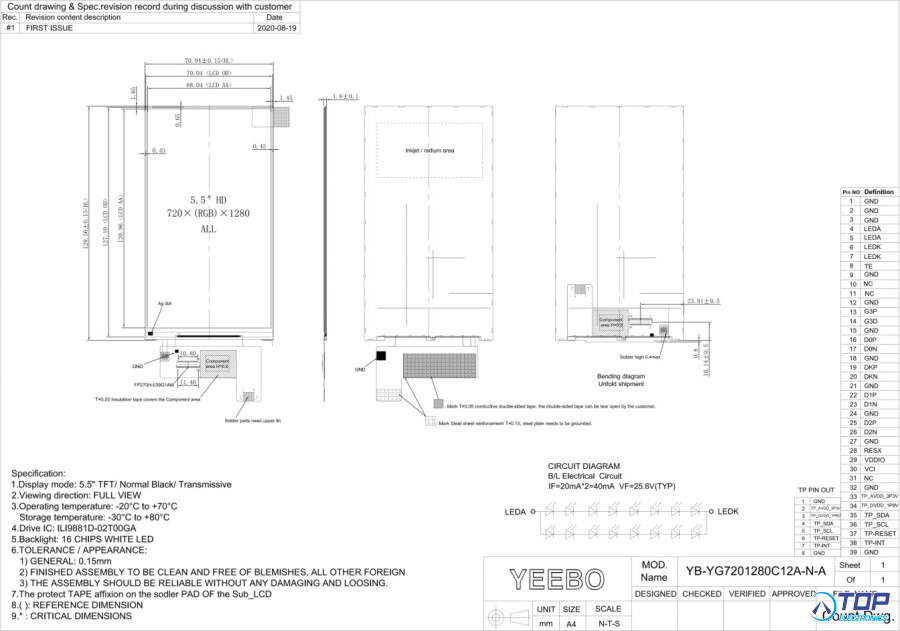

General Specification:

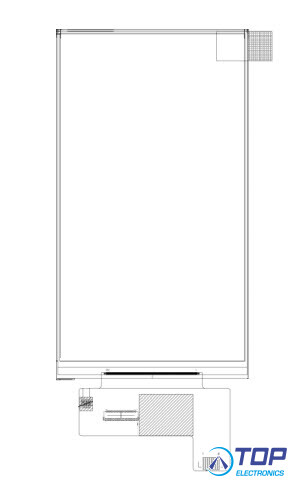

Outline Dimension: 70.94(W) x 129.56(H) x 1.7 (T)
Glass Area: 70.04(W) x 127.1(H) x 0.4(T)
Active Area: 68.04(W) x 120.96(H)
Display Size(Diagonal): 5.5 inch
Display Format: 720(RGB) * 1280 Pixels
LCD Type: TFT (16.7M)/ Transmissive / Normal White
Pixel Pitch: 31.5 x 94.5 um
View Direction: Free (IPS)
TFT IC: ILI9881D-02T00GA
Interface: MIPI DSI 4 passageway
Brightness: 550 nits
Weight: N/A
Operating Temperature: -20 ~+ 70℃
Storage Temperature: -30 ~+ 80℃
